T451B3004

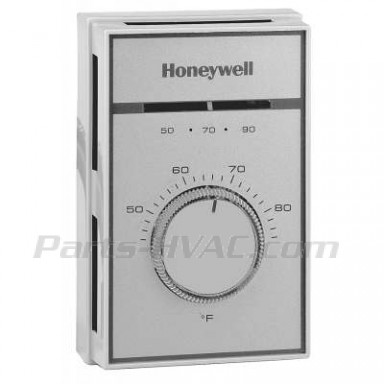

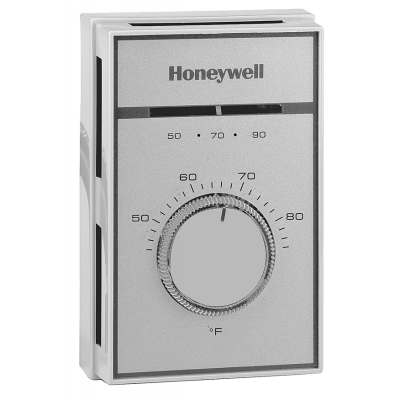

T451B3004 Honeywell
Line Voltage Thermostat, Light & Medium Duty for Heating. Less/Thermomter.
Champagne gold face-plate with beige cover, 120 to 227 Vac, SPDT, 50 F to 86 F, Heating Application.
Replaces:
T451A1041 T451A1058
T451A1090 T451A1116
T451A1173 T451A1181
T451A2015 T451A2049
In Stock (262)
Availability: In stock
$48.79
Details
Details
T451B3004 Honeywell
T451B3004 Honeywell Line Voltage Thermostat, Light & Medium Duty for Heating. Less/Thermomter.
Accessories: TG511A1000 - Clear Cover Guard, TG511D1004 - Beige Cover Guard.
| Hazmat Information | UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg |
| Application | Heating |
| Dimensions | 4 1/2 in. high x 2 15/16 in. wide x 1 1/2 in. deep (switches and wiring terminals protrude into outlet box 3/4 in.) 115 mm high x 75 mm wide x 39 mm deep (switches and wiring terminals protrude into outlet box 19 mm) |
| Includes | Vertical scaleplate no thermometer and high accuracy dual diaphragm sensor |
| Electrical Ratings | 22 A @ 120 - 240 Vac Resistive; 19 A @ 277 Vac Resistive.; 9.8 FLA / 58.8 ALR @ 120 Vac; 5.6 FLA / 33.6 ALR @ 208 Vac; 4.9 FLA / 29.4 ALR @240 Vac; 4.2 FLA / 25.2 ALR @277 Vac |
| T451B3004 Frequency | 50 Hz; 60 Hz |
| Approvals | Listed; File No. E4436, Guide No. XAPX CSA Certified, File No. LR1322 |
| Electrical Connections | Flylead |
| Supply Voltage | 120 to 227 Vac |
| Sensor Element | Vapor filled dual diaphragm |
| Differential Temperature | 2 F |
| T451B3004 Color | Champagne gold face-plate with beige cover |
| Switching Action | SPST- breaks on temperature rise; with positive off |
| Setting Temperature Range | 50 F to 86 F |
Additional Info
Additional Info
| Name | T451B3004 |
|---|---|
| Documentation | T451B3004 Honeywell |
| Manufacturer | Honeywell |
| UPC: | T451B3004 Honeywell |
