T498A1778
T498A1778 Honeywell - Non-programmable Electric 1 Heat Thermostat; 120 Vac; 208 Vac; 240 Vac; 277 Vac; SPST; 40-80F with Range stops & Locking cover; Vertical mounting; Bimetal.
REPLACES:
302H 800A AHT42A1A HWC-10
T31AA-1 T498A1059 T498A1067 T498A1083
T498A1117 T498A1216 T498A1224 T498A1273
T498A1323 T498A1349 T498A1364 T498A1372
T498A1398 T498A1430 T498A1448 T498A1463
T498A1570 T498A1596 T498A1604 T498A1612
T498C1008 T498D1015 TH570-242 TW1
Call For Availability
Availability: In stock
$58.16
Details
Details

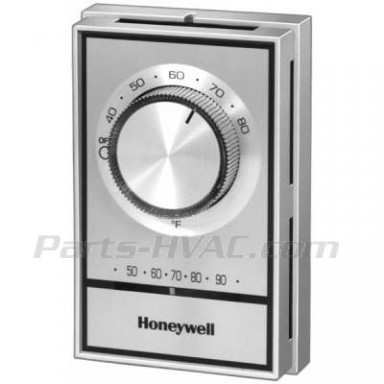

T498A1778 Honeywell
The T498A1778 Honeywell is an electric heat thermostat that provides line voltage control of electric heating systems.
| Application | Electric baseboards, convectors and fan forced heaters (resistive rated loads). |
| Dimensions | 4 9/16 in. high x 2 7/8 in. wide x 1 15/16 in. deep 116 mm high x 73 mm wide x 33 mm deep |
| Includes | Range stops, locking cover and extra knob decal for recalibration |
| Mounting | Vertical |
| Electrical Rating | Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac. |
| Frequency | 60 Hz |
| Stages | 1 Heat |
| Electrical Connections | 6 in. (150 mm) black and red leadwires |
| Supply Voltage | 120 Vac; 208 Vac; 240 Vac; 277 Vac |
| Sensor Element | Bimetal |
| Accuracy | 1 F 2 C |
| Differential Temperature | 3 F 2 C |
| Color | Brush gold finish |
| Ambient Temperature Range | 40 F to 80 F 5 C to 27 C |
| Switch Action | SPST |
| Setting Temperature Range | 40 F to 80 F 5 C to 27 C |
| External Sensors Available | Outdoor Sensor optional |
Additional Info
Additional Info
| Name | T498A1778 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | T498A1778 Honeywell |
