T498A1810

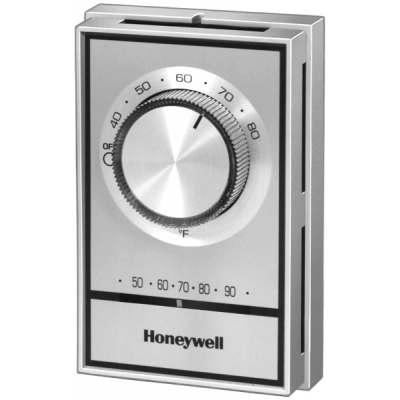

T498A1810 Honeywell - Non-programmable Electric Heat Thermostat for Electric Baseboard 1 Heat; Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac; SPST; Brush gold finish; Vertical Mounting; Bimetal; No Thermometer Or Range Stop Or Lock Cover.
REPLACES:
1A22 1A69-12 1A75-2 1B65
1B65-1 1B75-6 1C65-1 430-3008
800B T4981000 T498A000STA T498A1000
T498A1018 T498A1042 T498A1588 TH570-241
In Stock (42)
Availability: In stock
$47.36
Details
Details
T498A1810 Honeywell
The T498A1810 Honeywell is an electric heat thermostat that provides line voltage control of electric heating systems.
| Application | Electric baseboards, convectors and fan forced heaters (resistive rated loads). |
| Dimensions | 4 9/16 in. high x 2 7/8 in. wide x 1 15/16 in. deep 116 mm high x 73 mm wide x 33 mm deep |
| Mounting | Vertical |
| Electrical Rating | Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac. |
| Frequency | 60 Hz |
| Stages | 1 Heat |
| Electrical Connections | 6 in. (150 mm) copper leadwires, suitable for connecting to aluminum wiring if approved CO/ALR solderless connectors are used. |
| Supply Voltage | 120 Vac; 208 Vac; 240 Vac; 277 Vac |
| Sensor Element | Bimetal |
| Accuracy | 1 F 2 C |
| Differential Temperature | 3 F 2 C |
| Color | Brush gold finish |
| Ambient Temperature Range | 40 F to 85 F 5 C to 30 C |
| Switch Action | SPST |
| Setting Temperature Range | 40 F to 80 F |
Additional Info
Additional Info
| Name | T498A1810 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | T498A1810 Honeywell |
