T498B1553
T498B1553 Honeywell - Non-programmable Electric 1 Heat Thermostat; DPST; Less Thermometer, with Positive OFF; 40 - 80 F; Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac; Vertical Mounting; Bimetal.
REPLACES:
69122 T498B000STA
T498B1058 T498B1397
T498B1421 T498B1470
In Stock (1)
Availability: In stock
$59.23
Details
Details

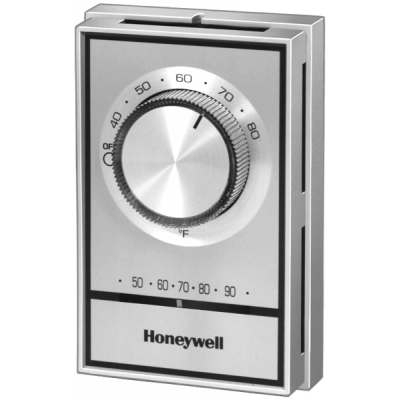

T498B1553 Honeywell
The T498B1553 Honeywell is an electric heat thermostat that provides line voltage control of electric heating systems.
| Application | Electric baseboards, convectors and fan forced heaters (resistive rated loads). |
| Dimensions | 4 9/16 in. high x 2 7/8 in. wide x 1 15/16 in. deep 116 mm high x 73 mm wide x 33 mm deep |
| Includes | Positive OFF |
| Mounting | Vertical |
| Electrical Rating | Non-inductive resistive 22A at 120/208/240 Vac. 19A at 277 Vac. |
| Frequency | 60 Hz |
| Stages | 1 Heat |
| Electrical Connections | 6 in. (150 mm) copper leadwires, suitable for connecting to aluminum wiring if approved CO/ALR solderless connectors are used. |
| Supply Voltage | 120 Vac; 208 Vac; 240 Vac; 277 Vac |
| Sensor Element | Bimetal |
| Accuracy | 1 F 2 C |
| Differential Temperature | 3 F 2 C |
| Color | Brush gold finish |
| Ambient Temperature Range | 40 F to 85 F 5 C to 30 C |
| Switch Action | DPST |
| Setting Temperature Range | 40 F to 80 F |
| External Sensors Available | Outdoor Sensor optional |
Additional Info
Additional Info
| Name | T498B1553 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | T498B1553 Honeywell |
