T6052A1007

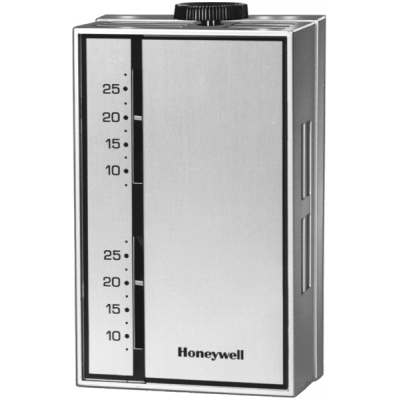

T6052A1007 Honeywell
Line Voltage Thermostat, Heavy Duty, for 2 Stage Heating or 2 Stage Cooling. **Obsolete Part
Replacement Part: T6052A1015
In Stock (2)
Availability: Out of stock
$237.98
Details
Details
T6052A1007 Honeywell
T6052A1007 Honeywell Line Voltage Thermostat, Heavy Duty, for 2 Stage Heating or 2 Stage Cooling. **Obsolete Part
Replacement Part: T6052A1015
| Hazmat Information | UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg |
| Application | Two stage heating or two stage cooling |
| Dimensions | 5 in. high x 3 1/8 in. wide x 1 5/8 in. deep 127 mm high x 79 mm wide x 41 mm deep |
| Used With | Q651A, B subbases for system and fan switching |
| Electrical Ratings | Stage 1: 120 Vac: 16 AFL, 96 ALR; 240 Vac: 8 AFL, 48 ALR ; Stage 2: 120 Vac: 8 AFL, 48 ALR; 240 Vac: 4 AFL, 24 ALR |
| Frequency | 50 Hz; 60 Hz |
| Approvals | Listed: File No. E4436, Guide No. XAPX Certified: File No. LR95329-1 |
| Electrical Connections | Screw terminals |
| Supply Voltage | 120 to 240 Vac |
| Switch Positions (System) | 2-stage heating or 2-stage cooling |
| Sensor Element | Vapor filled dual diaphragm |
| Differential Temperature | 1 F 0.6 C |
| Color | Plastic cover, tan |
| Switching Action | 2 SPDT switches |
| Setting Temperature Range | 46 F to 84 F 8 C to 29 C |
Additional Info
Additional Info
| Name | T6052A1007 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | T6052A1007 Honeywell |
