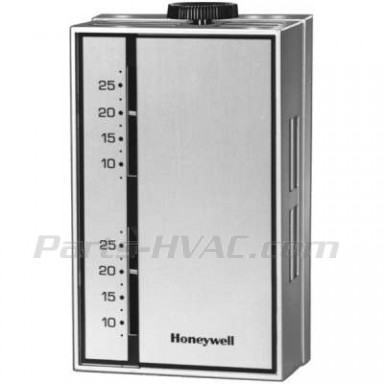

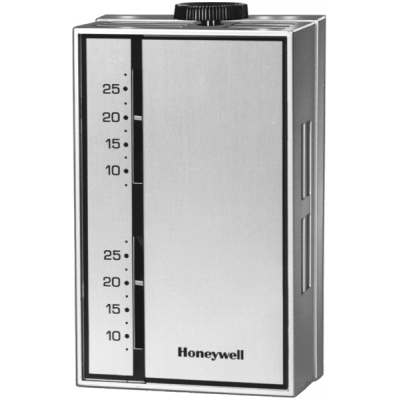

T6052A1015
T6052A1015 Honeywell
Line Voltage Thermostat, Heavy Duty, for 2 Stage Heating or 2 Stage Cooling.
Tan, Plastic Cover, 120 to 240 Vac, 46 F to 84 F, 2 SPDT switches
OBSOLETE
Direct Replacement: T25A-1 Johnson Controls
In stock
- SKU
- T6052A1015
- Availability
- In Stock (6)
$0.00
Details
T6052A1015 Honeywell
T6052A1015 Honeywell Line Voltage Thermostat, Heavy Duty, for 2 Stage Heating or 2 Stage Cooling.
| Hazmat Information | UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg |
| Application | Two stage heating or two stage cooling |
| Dimensions | 5 in. high x 3 1/8 in. wide x 1 5/8 in. deep 127 mm high x 79 mm wide x 41 mm deep |
| Includes | Vertical or horizontal mounting |
| Used With | Q651A, B subbases for system and fan switching |
| Electrical Ratings | Stage 1: 120 Vac: 16 AFL, 96 ALR; 240 Vac: 8 AFL, 48 ALR ; Stage 2: 120 Vac: 8 AFL, 48 ALR; 240 Vac: 4 AFL, 24 ALR |
| Frequency | 50 Hz; 60 Hz |
| Approvals | Listed: File No. E4436, Guide No. XAPX CSA Certified: File no. LR1620 |
| Electrical Connections | Screw terminals |
| Supply Voltage | 120 to 240 Vac |
| Switch Positions (System) | 2-stage heating or 2-stage cooling |
| Sensor Element | Vapor filled dual diaphragm |
| Differential Temperature | Stage 1 Heat, Stage 2 Cool: 2.5 F; Stage 2 Heat, Stage 1 Cool: 3.2 F |
| Color | Plastic cover, tan |
| Switching Action | 2 SPDT switches |
| Setting Temperature Range | 46 F to 84 F |
Additional Info
| Manufacturer | Honeywell |
|---|---|
| Documentation | T6052A1015 |
