T6052B1013

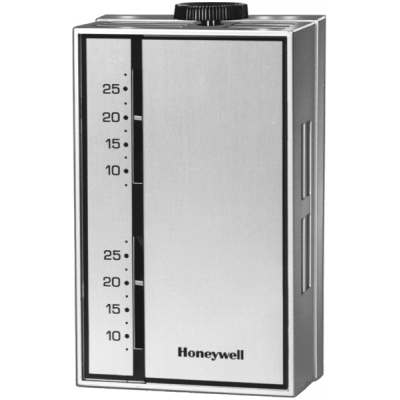

T6052B1013 Honeywell
Line Voltage Thermostat, Heavy Duty, Heating and cooling, auto changeover.
Tan, Plastic Cover, 120 to 240 Vac, 46 F to 84 F, 2 SPDT switches, Extra Faceplate for Horizontal or Vertical Mounting.
Replaces:
| T42K1027 T42K1035 T42K1043 | T42K10X T42K1X T42K2X | T42K3X T42K6X T6052B1005 |
In Stock (3)
Availability: In stock
$0.00
Details
Details
T6052B1013 Honeywell
T6052B1013 Honeywell Line Voltage Thermostat, Heavy Duty, Heating and cooling, auto changeover.
Accessories: TG511A1000 - Clear Cover Guard, TG511D1004 - Beige Cover Guard, 135531J - Vertical Scaleplate, Celsius, 23394B - Locking Guard.
| Hazmat Information | UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg |
| Application | Heating and cooling, auto changeover |
| Dimensions | 5 in. high x 3 1/8 in. wide x 1 5/8 in. deep 127 mm high x 79 mm wide x 41 mm deep |
| Includes | Vertical or horizontal mounting |
| Used With | Q651A, B subbases for system and fan switching |
| Electrical Ratings | Stage 1: 120 Vac: 16 AFL, 96 ALR; 240 Vac: 8 AFL, 48 ALR ; Stage 2: 120 Vac: 8 AFL, 48 ALR; 240 Vac: 4 AFL, 24 ALR |
| Frequency | 50 Hz; 60 Hz |
| Approvals | Listed: File No. E4436, Guide No. XAPX CSA Certified: File no. LR1620 |
| Electrical Connections | Screw terminals |
| Supply Voltage | 120 to 240 Vac |
| Switch Positions (System) | 1-stage heating-cooling |
| Sensor Element | Vapor filled dual diaphragm |
| Differential Temperature | Stage 1 Heat: 2.5 F; Stage 2 Cool: 3.2 F |
| Color | Plastic cover, tan |
| Switching Action | 2 SPDT switches |
| Setting Temperature Range | 46 F to 84 F |
Additional Info
Additional Info
| Name | T6052B1013 |
|---|---|
| Documentation | T6052B1013 |
| Manufacturer | Honeywell |
| UPC: | T6052B1013 Honeywell |
