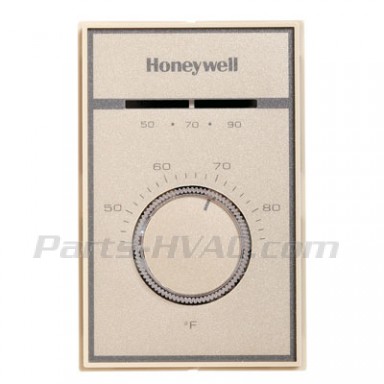

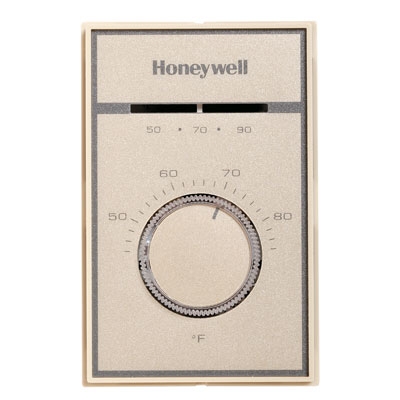

T651A3026
T651A3026 Honeywell
Line Voltage Thermostat, Medium Duty, for Heating and Cooling Celsius.
120 to 227 Vac, 7 C to 28 C.
Includes: Vertical scaleplate with thermometer, range stops and locking screws, wall plate, high accuracy Dual Diaphragm sensor.
Replaces: T451A1017 T451A1165
In Stock (2)
Availability: In stock
$253.83
- Buy 5 for $71.95 each and save 72%
- Buy 10 for $69.45 each and save 73%
Details
Details
T651A3026 Honeywell
T651A3026 Honeywell Line Voltage Thermostat, Medium Duty, for Heating and Cooling Celsius.
120 to 227 Vac, 7 C to 28 C.
| Hazmat Information | UN 2037 Butane (Receptacles, small, containing gas cartridges), 2.1, LTD. QTY, one Fiberboard box X 1kg |
| Application | Heating and cooling Celsius |
| Dimensions | 4 1/2 in. high x 2 15/16 in. wide x 1 1/2 in. deep (switches and wiring terminals protrude into outlet box 3/4 in.) 115 mm high x 75 mm wide x 39 mm deep (switches and wiring terminals protrude into outlet box 19 mm) |
| Includes | Vertical scaleplate with thermometer, range stops and locking screws, wall plate, high accuracy Dual Diaphragm sensor. |
| Electrical Ratings | 9.8 FLA / 58.8 LRA @ 120 Vac; 5.6 FLA / 33.6 LRA @ 208 Vac; 4.9 FLA / 29.4 LRA @240 Vac; 4.2 FLA / 25.2 LRA @277 Vac; 22 A @ 120 - 240 Vac Resistive; 19 A @ 277 Vac Resistive. |
| Frequency | 50 Hz; 60 Hz |
| Approvals | Listed: File No. E4436, Guide No. XAPX, Guide No. XAPX. CSA Certified, File No. LR1322 |
| Electrical Connections | Flylead |
| Supply Voltage | 120 to 227 Vac |
| Switch Positions (System) | heating and cooling |
| Sensor Element | Vapor filled dual diaphragm |
| Differential Temperature | 1 C |
| Color T651A3026 |
Champagne gold face-plate with beige cover |
| Switching Action | SPDT - breaks heating and makes cooling on temperature rise |
| Setting Temperature Range | 7 C to 28 C |
Additional Info
Additional Info
| Name | T651A3026 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | T651A3026 Honeywell |
