T8034C1481

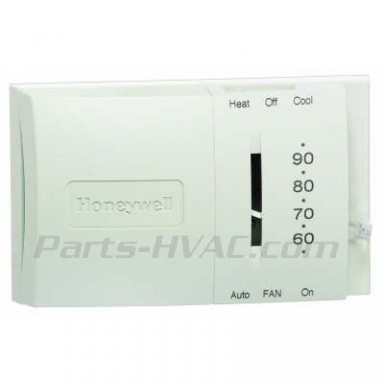

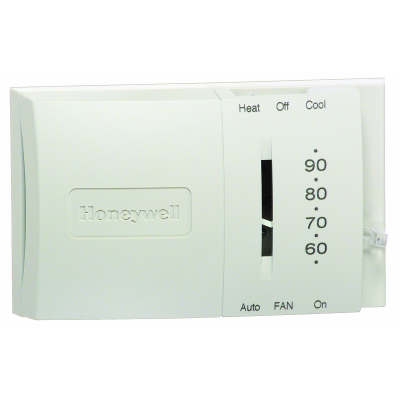

T8034C1481 Honeywell - Non-programmable Thermostat, Manual 1 Heat / 1 Cool, Premier White; 20 to 30 Vac; Switch type Mercury; R, W, Y, G, O, B, 1, 2 Terminal Designations; Horizontal mounting; Bimetal.
REPLACES: T8034C1226
In Stock
Availability: In stock
$36.83
Details
Details
T8034C1481 Honeywell
The T8034C1481 Honeywell meets all current and future mercury-free thermostat compliance needs with Honeywell’s Mercury-Free Econostat. With a sleek, attractive appearance, the Mercury-Free Econostat is the perfect electromechanical replacement choice.
| Application | Conventional and Heat Pump systems |
| Dimensions | 2 27/32 in. high x 4 23/32 in. wide x 1 15/32 in. deep 72 mm high x 120 mm wide x 38 mm deep |
| Mounting | Horizontal |
| Stages | 1 Heat/1 Cool |
| Supply Voltage | 20 to 30 Vac |
| Switch Positions (System) | OFF-HEAT-COOL |
| Switch Positions (Fan) | AUTO-ON |
| Sensor Element | Bimetal |
| Accuracy | 2 F 1 C |
| Color | Premier White® |
| Switch Action | SPDT |
| Switch Type | Mercury |
| Terminal Designations | R, W, Y, G, O, B, 1, 2 |
| Changeover | Manual |
| Setting Temperature Range | 55 F to 95 F |
| Cool Current | 1.5A running, 7.5A inrush at 25 Vac |
| Heat Current | 0.15A to 1.2A |
| Fan Current | 2.0A |
| External Sensors Available | Outdoor Sensor optional |
Additional Info
Additional Info
| Name | T8034C1481 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | T8034C1481 |
