T8034N1007

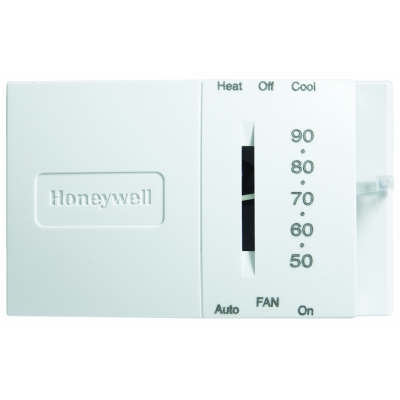

T8034N1007 Honeywell - Non-programmable Thermostat Mercury Free , 1 Heat / 1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat; 20 to 30 Vac; Precision Snap Action; 50 - 90F Setting Temperature Range; Horizontal mount.
REPLACES:
CT52A1017 Q634D1002
Q634D1028 Q634D1036
Q634E1001 T8034C1085
In-Stock (18)
Availability: In stock
$53.80
Details
Details
T8034N1007 Honeywell
The T8034N1007 Honeywell meets all current and future mercury-free thermostat compliance needs with Honeywell’s Mercury-Free Econostat. With a sleek, attractive appearance, the Mercury-Free Econostat is the perfect electromechanical replacement choice.
| Application | 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat |
| Dimensions | 2 7/8 in. high x 4 3/4 in. wide x 1 3/8 in. deep 73 mm high x 121 mm wide x 35 mm deep |
| Mounting | Horizontal |
| Electrical Rating | 20 to 30 Vac |
| Stages | 1 Heat/1 Cool |
| Supply Voltage | 20 to 30 Vac |
| Switch Positions (System) | OFF-HEAT-COOL |
| Switch Positions (Fan) | AUTO-ON |
| Sensor Element | Bimetal |
| Accuracy | ±2 F ±1 C |
| Color | Premier White® |
| Switch Action | SPDT |
| Switch Type | Precision Snap Action |
| Terminal Designations | R, Rc, W, Y, G, O, B |
| Changeover | Manual |
| Setting Temperature Range | 45 F to 95 F |
| Cool Current | 1.5A running, 7.5A inrush at 25 Vac |
| Heat Current | 0.18A to 1.0A at 30 Vac max |
| Fan Current | 2.0A |
Additional Info
Additional Info
| Name | T8034N1007 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | T8034N1007 Honeywell |
