T812A1002

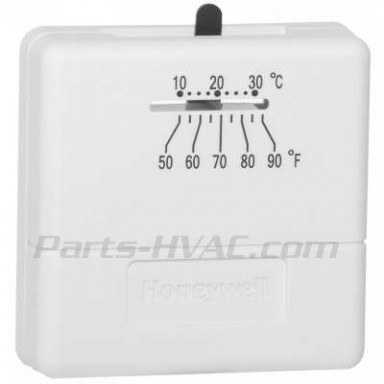

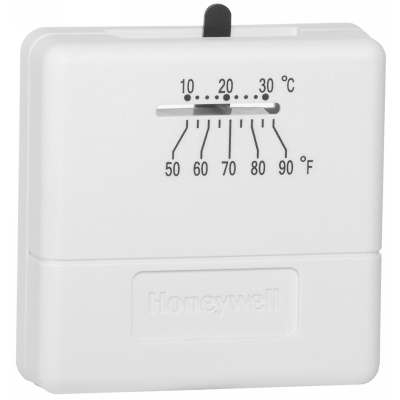

T812A1002 Honeywell - Non-Programmable T812 Thermostat; 1 Heat; Mounting Square; Bimetal; 45 F to 95 F; Snap action
REPLACES: T810D1003 T810D1011 CT30A
In Stock (249)
Availability: In stock
$28.34
Details
Details
T812A1002 Honeywell
The T812A1002 Honeywell is a Basic Thermostat for low voltage control of single-stage heating, cooling or heating-cooling systems.
| Application | Heat Only |
| Dimensions | 3 1/8 in. high x 3 1/8 in. wide x 7/8 in. deep 79 mm high x 79 mm wide x 23 mm deep |
| Mounting | Square |
| Electrical Rating | 18 to 30 Vac |
| Stages | 1 Heat |
| Operating Humidity Range (% RH) | 5 to 90% RH |
| Supply Voltage | 20 to 30 Vac |
| Sensor Element | Bimetal |
| Accuracy | ±3 F ±1.5 C |
| Color | Premier White® |
| Switching Action | SPST |
| Switch Type | Snap action |
| Terminal Designations | W, R |
| Setting Temperature Range | 45 F to 95 F 7 C to 35 C |
| Heat Current | 1.0A running, 2.5A inrush at 24 Vac |
| Fan Current | 1.0A running, 5A inrush at 24 Vac |
| External Sensors Available | Remote, Outdoor, Discharge Sensors optional |
Additional Info
Additional Info
| Name | T812A1002 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | T812A1002 Honeywell |
