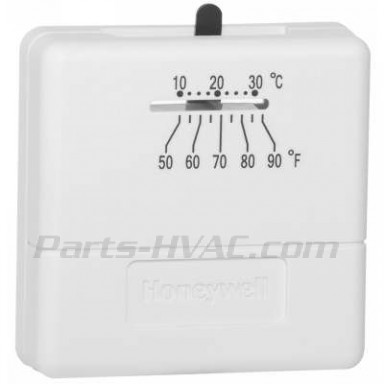

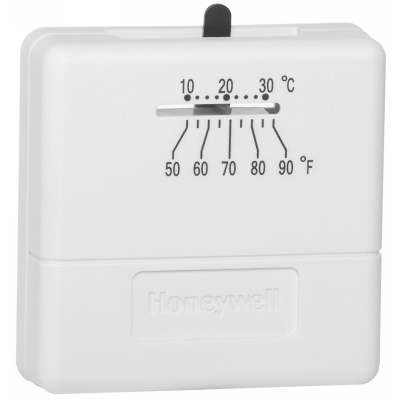

T812B1001 Honeywell
The T812B1001 Honeywell is a basic thermostat for low voltage control of single-stage heating, cooling or heating-cooling systems.
| Application | Heat Only - 12 Vdc |
| Dimensions | 3 1/8 in. high x 3 1/8 in. wide x 7/8 in. deep 79 mm high x 79 mm wide x 23 mm deep |
| Mounting | Square |
| Electrical Rating | 12 Vdc |
| Stages | 1 Heat |
| Operating Humidity Range (% RH) | 5 to 90% RH |
| Supply Voltage | 12 Vdc |
| Switch Positions | Positive Off |
| Sensor Element | Bimetal |
| Accuracy | ±3 F ±1.5 C |
| Color | Premier White® |
| Switching Action | SPST |
| Switch Type | Snap action |
| Terminal Designations | W, R |
| Setting Temperature Range | 45 F to 95 F 7 C to 35 C |
| Heat Current | 1.0A running, 2.5A inrush at 24 Vac |
| Fan Current | 1.0A running, 5A inrush at 24 Vac |
Additional Info
| Manufacturer | Honeywell |
|---|
