T812C1000
T812C1000 Honeywell - Non-Programmable T812 Thermostat; 1 Heat/1 Cool stage for 24 Vac heating and cooling; Bimetal; Snap action; Mounting Square; 0.18A - 1.2A @ 30VAC
In Stock (8)
Availability: In stock
$35.23
Details
Details

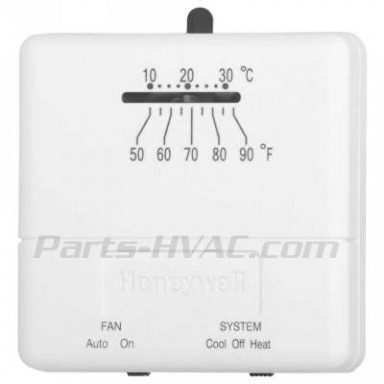

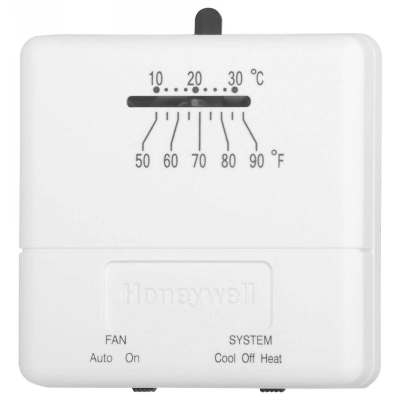

T812C1000 Honeywell
The T812C1000 Honeywell is a basic thermostat for low voltage control of single-stage heating, cooling or heating-cooling systems.
| Application | 1 Heat/1 Cool Conventional Systems |
| Dimensions | 3 1/8 in. high x 3 1/8 in. wide x 7/8 in. deep 79 mm high x 79 mm wide x 23 mm deep |
| Mounting | Square |
| Electrical Rating | 18 to 30 Vac |
| Stages | 1 Heat/1 Cool |
| Operating Humidity Range (% RH) | 5 to 90% RH |
| Supply Voltage | 20 to 30 Vac |
| Switch Positions | OFF-HEAT-COOL AUTO-ON |
| Sensor Element | Bimetal |
| Accuracy | ±3 F ±1.5 C |
| Color | Premier White® |
| Switching Action | SPDT |
| Switch Type | Snap action |
| Terminal Designations | R, W, Y, G |
| Anticipator Setting | Heating-0.18A to 1.2A @ 30 Vac adjustable; Cooling-0.18A to 1.2A @ 30 Vac adj. |
| Changeover | Manual |
| Setting Temperature Range | 45 F to 95 F 7 C to 35 C |
| Cool Current | 1.0A running, 2.5A inrush at 24 Vac |
| Heat Current | 1.0A running, 2.5A inrush at 24 Vac |
| Fan Current | 1.0A running, 5A inrush at 24 Vac |
Additional Info
Additional Info
| Name | T812C1000 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | T812C1000 Honeywell |
