T812D1009
Details

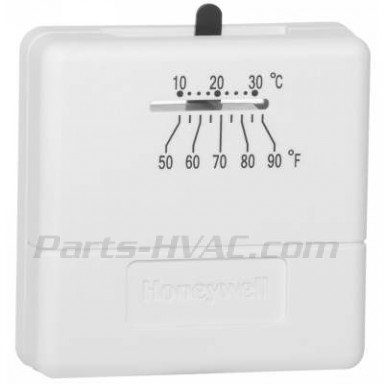

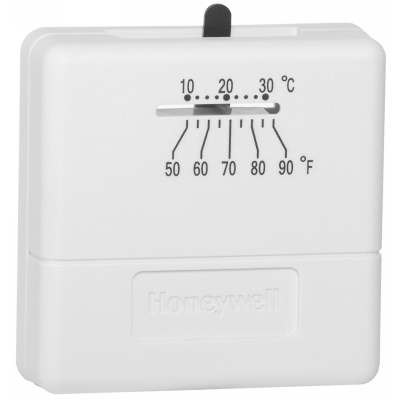

T812D1009 Honeywell
The T812D1009 Honeywell is a basic thermostat for low voltage control of single-stage heating, cooling or heating-cooling systems.
| Application | Cool Only |
| Dimensions | 3 1/8 in. high x 3 1/8 in. wide x 7/8 in. deep 79 mm high x 79 mm wide x 23 mm deep |
| Mounting | Square |
| Electrical Rating | 18 to 30 Vac |
| Stages | 1 Cool |
| Operating Humidity Range (% RH) | 5 to 90% RH |
| Supply Voltage | 20 to 30 Vac |
| Sensor Element | Bimetal |
| Accuracy | ±3 F ±1.5 C |
| Color | Premier White® |
| Switching Action | SPST |
| Switch Type | Snap action |
| Terminal Designations | R, Y |
| Anticipator Setting | Cooling-fixed 24 to 30 Vac |
| Setting Temperature Range | 45 F to 95 F 7 C to 35 C |
| Cool Current | 1.0A running, 2.5A inrush at 24 Vac |
| Fan Current | 1.0A running, 5A inrush at 24 Vac |
Additional Info
| Manufacturer | Honeywell |
|---|
