T87N1026
Details
T87N1026 Honeywell

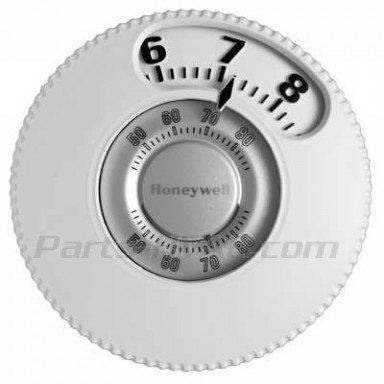

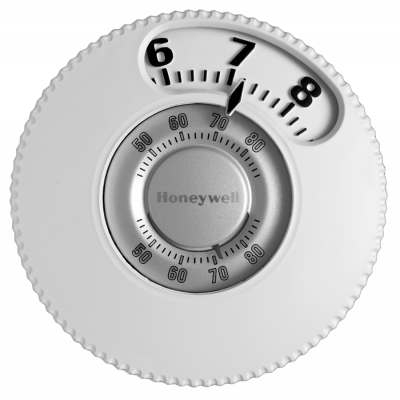

The T87N1026 Honeywell is a Round® thermostat that provides electronic control of 24Vac heating and cooling systems with the classic twist to set dial.
| Hazmat Information | UN 3091 Lithium metal batteries packed in/with equipment |
| Application | 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat |
| Dimensions | 4 in. diameter x 1 3/4 in. deep 102 mm diameter x 45 mm deep |
| Includes | 6 in. (152 mm) cover ring and switch position labels |
| Comments | EASY-TO-SEE model with Large raised markings and a click at each 2 degree setpoint change |
| Mounting | Round |
| Electrical Rating | 20 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Stages | 1 Heat/1 Cool |
| Operating Humidity Range (% RH) | 5 to 90% RH (non-condensing) |
| Supply Voltage | 20 to 30 Vac |
| Switch Positions | HEAT-OFF-COOL AUTO-ON |
| Sensor Element | Thermistor |
| Accuracy | ± 2 F ± 1 C |
| Color | Premier White® |
| Switch Type | Relay |
| Power Method | Battery assisted power stealing |
| Terminal Designations | R, Rc, W, Y, G, O, B |
| Changeover | Manual |
| Setting Temperature Range | 40 F to 90 F |
| Cycles per Hour | Adjustable 1, 3, 5, 9 |
| Cool Current | 0.02A to 1.0A running |
| Heat Current | 0.02A to 1.0A running |
Additional Info
| Manufacturer | Honeywell |
|---|
