TB6575B1000
TB6575B1000 Honeywell

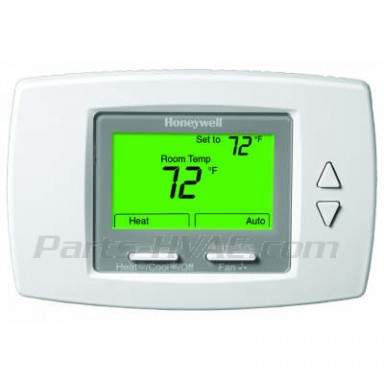

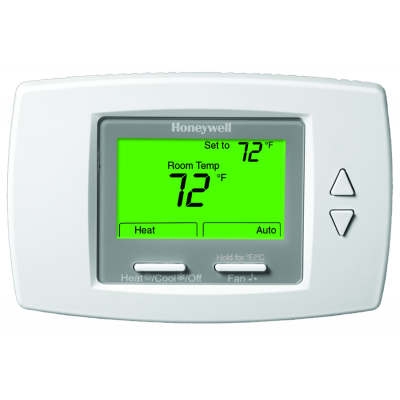

TB6575B1000 Honeywell Fan Coil Thermostat.
SuitePRO- 120/240V, 3-Speed, 2 Pipe, Manual/Auto, Heat/Cool Changeover, Remote Setback.
*Only application with seasonal changeover, Remote Setback, And 3 Fan Speeds.
In-Stock (195)
Availability: In stock
$202.54
Details
Details
TB6575B1000 Honeywell
TB6575B1000 Honeywell Fan Coil Thermostat.
SuitePRO- 120/240V, 3-Speed, 2 Pipe, Manual/Auto, Heat/Cool Changeover, Remote Setback.
*Only application with seasonal changeover, Remote Setback, And 3 Fan Speeds.
| Application | 2 pipe fan coil, Heat/Cool manual/auto changeover, 3-speed fan, 120 - 240 Vac |
| Dimensions | 3 13/16 in. high x 5 13/16 in. wide x 1 1/8 in. deep 97 mm high x 148 mm wide x 29 mm deep |
| Mounting | Horizontal mounting on 2 x 4 in. (50 mm x 75 mm) single gang electrical box. Vertical mounting 2 x 4 in. or 4 x 4 in junction box with optional wall plate (50033847-001). |
| Electrical Ratings | 120 Vac, Fan Rating: 6.0 A, Relay Rating: 1.0 A; 240 Vac, Fan Rating: 3.0 A, Relay Rating: 1.0 A |
| Frequency | 50 Hz; 60 Hz |
| Approvals | Meets the same requirements as UL-873 Certified FCC Part 15, Class B |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 120 Vac ± 10%; 240 Vac ± 10% |
| Switch Positions (System) | OFF-HEAT-COOL-AUTO |
| Switch Positions (Fan) | HI-MED-LOW-AUTO-OFF |
| Color | Premier White® |
| Display | LCD |
| Changeover | Manual/Auto |
| Setting Temperature Range | 50 F to 90 F 10 C to 30 C |
Additional Info
Additional Info
| Name | TB6575B1000 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TB6575B1000 Honeywell |
