TB6575C1000
TB6575C1000 Honeywell

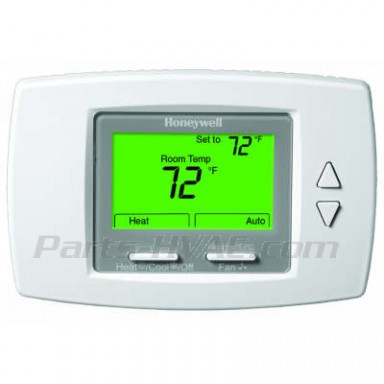

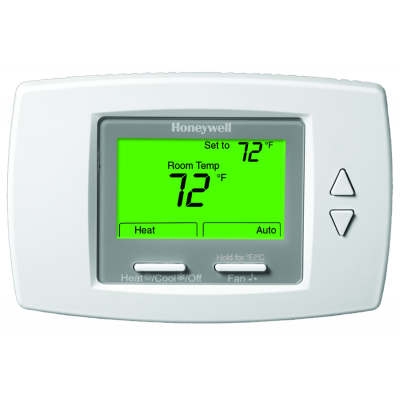

TB6575C1000 Honeywell Fan Coil Thermostat.
SuitePRO - 277V, 3-Speed, 2 or 4 Pipe, Manual/Auto, Heat/Cool Changeover, Remote Setback.
In Stock (102)
Availability: In stock
$175.15
Details
Details
TB6575C1000 Honeywell
TB6575C1000 Honeywell Fan Coil Thermostat.
SuitePRO - 277V, 3-Speed, 2 or 4 Pipe, Manual/Auto, Heat/Cool Changeover, Remote Setback.
| Application | 2 or 4 pipe fan coil, Heat/Cool manual/auto changeover, 3-speed fan, 120 - 240 Vac |
| Dimensions | 3 13/16 in. high x 5 13/16 in. wide x 1 1/8 in. deep 97 mm high x 148 mm wide x 29 mm deep |
| Mounting | Direct mounting on horizontal 2 x 4 in. (50mm x 75 mm) junction box. Mounts on vertical 2 x 4 in. or 4 x 4 in junction box with optional wall plate (50033847-001). |
| Electrical Ratings | 277Vac, Fan Rating : 2.4A, Heat/Cool Relay Rating : 1.0A |
| Frequency | 50 Hz; 60 Hz |
| Approvals | Meets the same requirements as UL-873 Certified FCC Part 15, Class B |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 120 Vac(+/-10%), 240 Vac(-15% to 10%) or 277 Vac(+/- 10%) |
| Switch Positions (System) | OFF-HEAT-COOL-AUTO |
| Switch Positions (Fan) | HI-MED-LOW-AUTO-OFF |
| Color | Premier White® |
| Display | LCD |
| Changeover | Manual/Auto |
| Setting Temperature Range | 50 F to 90 F 10 C to 30 C |
Additional Info
Additional Info
| Name | TB6575C1000 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TB6575C1000 Honeywell |
