TB7200F5014B

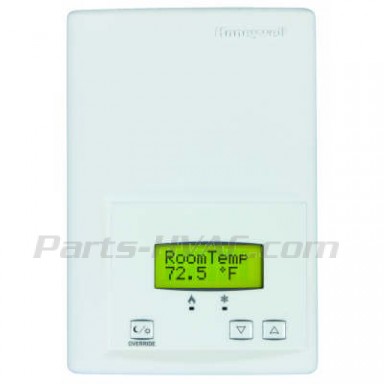

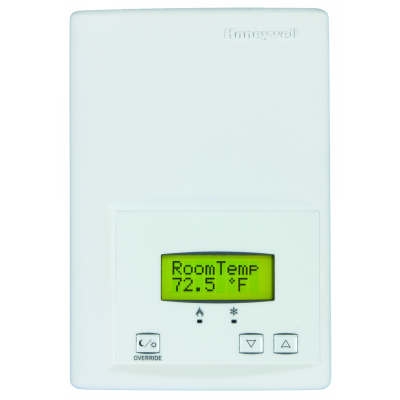

TB7200F5014B Honeywell Modulating Commercial Communicating Zoning Thermostat 0 - 10 Vdc
Reheat, 1 Aux Output, BACnet MS/TP
In Stock (1)
Availability: In stock
$352.81
Details
Details
TB7200F5014B Honeywell
Modulating Commercial Communicating Zoning Thermostat 0 - 10 Vdc
Reheat, 1 Aux Output, BACnet MS/TP
| Application | Zoning Modulating with Reheat |
| Dimensions | 5 in. high x 3 2/5 in. wide x 1 3/20 in. deep 125 mm high x 86 mm wide x 29 mm deep |
| Includes | Remote Temperature Sensor Input, 2 Digital Inputs; 1 Universal Input; 1 Aux Output |
| Used With | Compatible with WEBs-AX |
| Mounting | Vertical |
| Frequency | 50 Hz; 60 Hz |
| Operating Humidity Range (% RH) |
0 to 95% RH, non-condensing |
| Supply Voltage | 24 Vac with range from 19 to 30 Vac |
| Switch Positions (System) | OFF-HEAT-COOL-AUTO |
| Switch Positions (Fan) | HI-MED-LOW-AUTO-OFF |
| Operating Temperature Range | 32 F to 122 F 0 C to 50 C |
| Network Communications | BACnet MS/TP |
| Throttling Range | 3 F to 10 F 1.7 C to 5.6 C |
| Color | White |
| Output Signal | 0 - 10 Vdc |
| Display | LCD |
| Changeover | Manual/Auto |
| Setting Temperature Range | Heating: 40 F to 90 F; Cooling: 54 F to 100 F Heating: 4.5 C to 32 C; Cooling: 12.0 C to 37.5 C |
| Occupancy Sensor | Upgradeable with PIR occupancy sensor cover TB-PIR-ZN |
| Output Signal Burden | 0 - 10 Vdc into 2k Ohm resistance min. |
Additional Info
Additional Info
| Name | TB7200F5014B |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TB7200F5014B Honeywell |
