TB7300F5014B

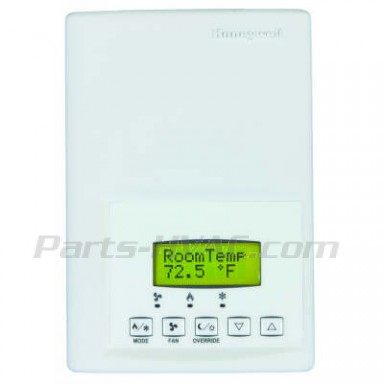

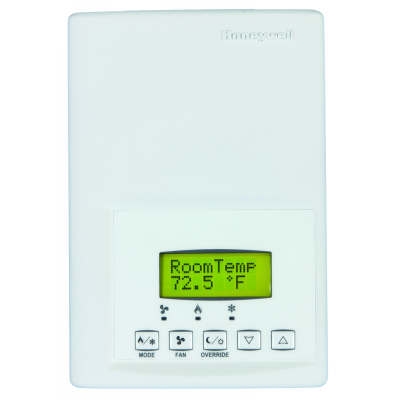

TB7300F5014B Honeywell Communicating Fan Coil Thermostat
2 or 4 Pipe Analog Communicating Fan Coil T-Stat, 24 VAC, Interface,BACnet MS/TP
Includes: Remote Temperature Sensor Input, 2 Digital Inputs; 1 Universal Input; 1 Aux Output
Call For Availability
Availability: In stock
$509.11
- Buy 2 for $272.50 each and save 47%
- Buy 5 for $268.39 each and save 48%
Details
Details
TB7300F5014B Honeywell
Communicating Fan Coil Thermostat
2 or 4 Pipe Analog Communicating Fan Coil T-Stat, 24 VAC, Interface,BACnet MS/TP
Includes: Remote Temperature Sensor Input, 2 Digital Inputs; 1 Universal Input; 1 Aux Output
| Application | 2 or 4 Pipe Analog Fan Coil, 24 Vac, Commercial |
| Dimensions | 5 in. high x 3 2/5 in. wide x 1 3/20 in. deep 125 mm high x 86 mm wide x 29 mm deep |
| Includes | Remote Temperature Sensor Input, 2 Digital Inputs; 1 Universal Input; 1 Aux Output |
| Used With | Compatible with WEBs-AX |
| Mounting | Vertical |
| Electrical Ratings | Fan relay output: 30 Vac, 1A max, 3A in-rush; Valve analog output: 0 to 10 Vdc into 2KW resistance min. |
| Frequency | 50 Hz; 60 Hz |
| Approvals | UL-873 Certified FCC Part 15, Subpart B, Class A |
| Operating Humidity Range (%RH) | 0 to 95% RH, non-condensing |
| Supply Voltage | 24 Vac with range from 19 to 30 Vac |
| Switch Positions (System) | OFF-HEAT-COOL-AUTO |
| Switch Positions (Fan) | HI-MED-LOW-AUTO-OFF |
| Operating Temperature Range | 32 F to 122 F 0 C to 50 C |
| Network Communications | BACnet MS/TP |
| Color | White |
| Display | LCD |
| Changeover | Manual/Auto |
| Setting Temperature Range |
Heating: 40 F to 90 F; Cooling: 54 F to 100 F Heating: 4.5 C to 32 C; Cooling: 12.0 C to 37.5 C |
| Occupancy Sensor | Upgradeable with PIR occupancy sensor cover TB-PIR-FCU-C |
Additional Info
Additional Info
| Name | TB7300F5014B |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TB7300F5014B Honeywell |
