TB7600H5514B
TB7600H5514B Honeywell

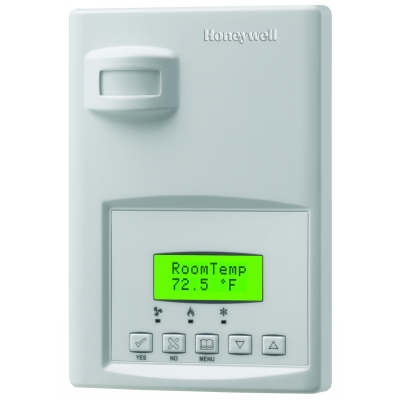

TB7600H5514B Honeywell Communicating Heat Pump RTU/Heat Pump Thermostat
PIR, 3 Heat / 2 Cool, BACnet MS/TP, Scheduling/NO
Application: Heat Pump Systems
In Stock (1)
Availability: In stock
$557.39
Details
Details
TB7600H5514B
TB7600H5514B Honeywell Communicating Heat Pump Thermostat
With PIR Sensor
24 Vac, W/ Commerical Interface, BACnet MS/TP, No Scheduling
Stages / Output : 3 Heat, 2 Cool
Includes: 3 Sensor Inputs, 2 Digital Inputs; 1 Universal Input; 1 Aux Output
| Application | Regular, conventional systems |
| Dimensions | 5 in. high x 3 2/5 in. wide x 1 3/20 in. deep 125 mm high x 86 mm wide x 29 mm deep |
| Includes | Mixed Air Sensor Inputs, Outdoor Air Sensor, and Remote Temperature Sensor 2 Digital Inputs, 1 Aux Output |
| Used With | Compatible with WEBs-AX |
| Mounting | Vertical |
| Supply Voltage | 24 Vac with range from 19 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Operating Humidity Range (%RH) | 0 to 95% RH, non-condensing |
| Switch Positions (System) | OFF-HEAT-COOL-AUTO-EM. HEAT |
| Switch Positions (Fan) | SMART-AUTO-ON |
| Operating Temperature Range | 32 F to 122 F 0 C to 50 C |
| Network Communications | BACnet MS/TP |
| Stages / Output | 3 Heat, 2 Cool |
| Color | White |
| Display | LCD |
| Setting Temperature Range | Heating: 40 F to 90 F, Cooling: 54 F to 100 F Heating: 4.5 C to 32 C, Cooling: 12.0 C to 37.5 C |
| Occupancy Sensor | Onboard PIR occupancy sensor cover |
Additional Info
Additional Info
| Name | TB7600H5514B |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | TB7600H5514B Honeywell |
