TB7656B5014B

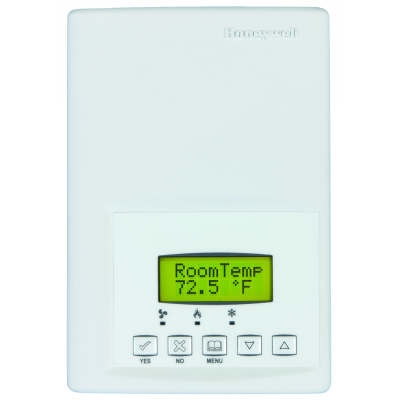

TB7656B5014B Honeywell
Communicating Economizer RTU/Heat Pump Thermostat
2 Heat / 2 Cool, BACnet MS/TP, Scheduling/YES
Application: Conventional systems
In Stock (1)
Availability: In stock
$382.94
Details
Details
TB7656B5014B Honeywell
Communicating Economizer RTU/Heat Pump Thermostat
2 Heat / 2 Cool, BACnet MS/TP, Scheduling/YES
Application: Conventional systems
| Application | Conventional systems |
| Dimensions | 5 in. high x 3 2/5 in. wide x 1 3/20 in. deep 125 mm high x 86 mm wide x 29 mm deep |
| Includes | Remote Temperature Sensor, Outdoor Air Sensor & Mixed Air Sensor Inputs; 2 Digital Inputs; 1 Aux Output |
| Used With | Compatible with WEBs-AX |
| Item Type | Product |
| Mounting | Vertical |
| Frequency | 50 Hz; 60 Hz |
| Stages | 2 Heat / 2 Cool |
| Approvals | UL-873 Certified FCC Part 15, Subpart B, Class A |
| Operating Humidity Range (% RH) | 0 to 95% RH, non-condensing |
| Supply Voltage | 24 Vac with range from 19 to 30 Vac |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO |
| Switch Positions (Fan) | ON-SMART-AUTO |
| Operating Temperature Range | 32 F to 122 F 0 C to 50 C |
| Network Communications | BACnet MS/TP |
| Color | White |
| Display | LCD |
| Scheduling | 7 Day (for use in non-networked applications) |
| Setting Temperature Range | Heating: 40 F to 90 F; Cooling: 54 F to 100 F Heating: 4.5 C to 32 C; Cooling: 12.0 C to 37.5 C |
| Occupancy Sensor | Upgradeable with PIR occupancy sensor cover TB-PIR-RTU |
Additional Info
Additional Info
| Name | TB7656B5014B |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | TB7656B5014B Honeywell |
