TB8575A1000

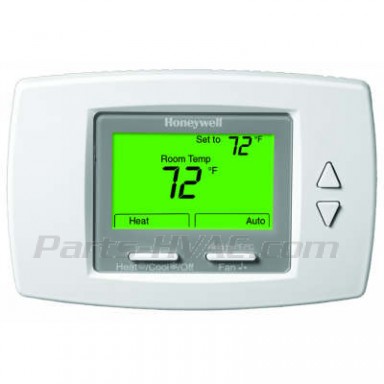

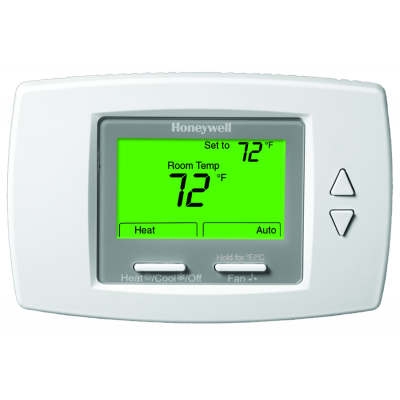

TB8575A1000 Honeywell
TB8575A1000 Honeywell Fan Coil Thermostat.
SuitePRO - 24Vac, 3-Speed, 2 or 4 Pipe, Manual/Auto, Heat/Cool Changeover, Remote Setback.
REPLACES: T8575B2007 T8575C2005 T8575D2003 T8575C1007
In Stock (261)
Availability: In stock
$176.77
- Buy 5 for $124.36 each and save 30%
- Buy 10 for $119.31 each and save 33%
Details
Details
TB8575A1000 Honeywell
TB8575A1000 Honeywell Fan Coil Thermostat.
SuitePRO - 24Vac, 3-Speed, 2 or 4 Pipe, Manual/Auto, Heat/Cool Changeover, Remote Setback.
| Application | 2 or 4 pipe fan coil, Heat/Cool manual/auto changeover, 3-speed fan, 24 Vac |
| Dimensions | 3 13/16 in. high x 5 13/16 in. wide x 1 1/8 in. deep 97 mm high x 148 mm wide x 29 mm deep |
| Mounting | Horizontal mounting on 2 x 4 in. (50 mm x 75 mm) single gang electrical box. Vertical mounting 2 x 4 in. or 4 x 4 in junction box with optional wall plate (50033847-001). |
| Electrical Ratings | 24 Vac, Fan Rating: 1.0 A, Relay Rating: 1.0 A |
| Frequency | 50 Hz; 60 Hz |
| Approvals | Meets the same requirements as UL-873 Certified FCC Part 15, Class B |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 20 to 30 Vac |
| Switch Positions (System) | OFF-HEAT-COOL-AUTO |
| Switch Positions (Fan) | HI-MED-LOW-AUTO-OFF |
| Color | Premier White® |
| Display | LCD |
| Changeover | Manual/Auto |
| Setting Temperature Range | 50 F to 90 F 10 C to 30 C |
Additional Info
Additional Info
| Name | TB8575A1000 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TB8575A1000 Honeywell |
