TH1100D1001
TH1100D1001 Honeywell - Non-Programmable PRO Digital Termostat; 24 Vac; Heat Only; 40 F to 90 F or 35 F to 90 F; Display size 1.32 sq in.; 1 Heat
OBSOLETE

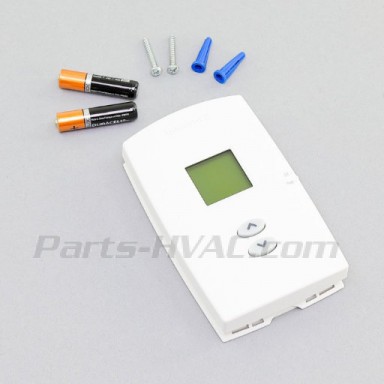

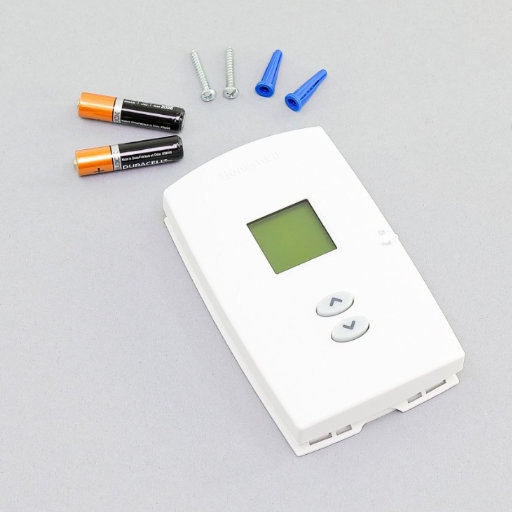

See the updated version: TH1100DV1000
Replacement - In Stock (65)
Availability: In stock
$32.64
Details
Details
TH1100D1001 Honeywell
The TH1100D1001 Honeywell is a Non-Programmable PRO Digital Thermostat; 24 Vac; Heat Only; 40 F to 90 F or 35 F to 90 F; Display size 1.32 sq in.; 1 Heat
| Application | Heat Only |
| Dimensions | 4 11/16 in. High X 2 7/8 in. Wide X 1 1/8 in. Deep 120 mm high x 74 mm wide x 28 mm deep |
| Comments | Adjustable Temperature Scale: Standard selection of 40 to 90F or Garage selection of 35 to 90F |
| Mounting | Vertical |
| Electrical Rating | 20 to 30 Vac or 750 mV |
| Frequency | 50 Hz; 60 Hz |
| Stages | 1 Heat |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Supply Voltage | 20 to 30 Vac; 750 mV |
| Switch Positions | HEAT-OFF |
| Sensor Element | Thermistor |
| Accuracy | ±1 F ± 0.5 C |
| Color | Premier White® |
| Switch Type | Relay |
| Power Method | Dual Powered: Battery or Hardwire |
| Terminal Designations | R, C, W, |
| Display Size | 1.32 sq in. |
| Changeover | Manual |
| Setting Temperature Range | Selectable Heat: 40 F to 90 F or 35 F to 90 F Selectable Heat 4.5 C to 32 or 1.5 C to 32 C |
| Cycles per Hour | Heating 2-6 CPH |
| Heat Current | 0.02 A to 1.0 A running |
Additional Info
Additional Info
| Name | TH1100D1001 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TH1100D1001 |
