TH1110DH1003

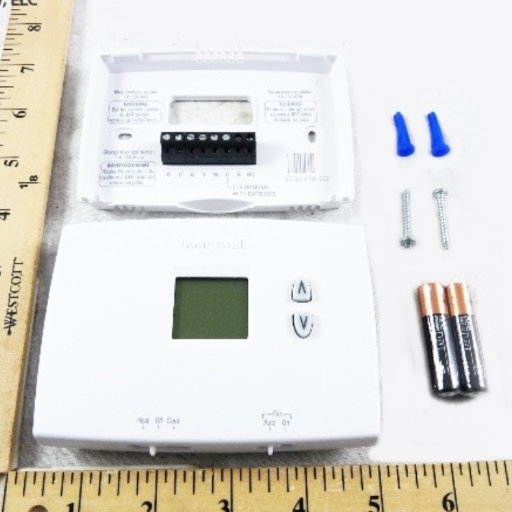

TH1110DH1003 Honeywell - Non-Programmable PRO Digital Thermostat; 1 Heat/1 Cool; Dual Powered: Battery or Hardwire; Display Size 1.32 sq in.; Mounting Horizontal
Can be used to replace TH147 (Doesn't look the same, but functions the same.)
In Stock (364)
Availability: In stock
$46.62
- Buy 6 for $32.50 each and save 31%
- Buy 12 for $30.25 each and save 36%
Details
Details
TH1110DH1003 Honeywell
The TH1110DH1003 Honeywell Thermostat is a Non-Programmable PRO Digital Thermostat; 1 Heat / 1 Cool; Dual Powered: Battery or Hardwire; Display Size 1.32 sq in.; Mounting Horizontal
| Application | 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat |
| Dimensions | 3 7/16 in. High x 4 10/16 in. Wide x 1 3/16 in. Deep 87mm High x 119mm Wide x 30mm Deep |
| Mounting | Horizontal |
| Electrical Rating | 20 to 30 Vac or 750 mV |
| Frequency | 60 Hz, 50 Hz |
| Stages | 1 Heat/1 Cool |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Supply Voltage | 20 to 30 Vac; 750 mV |
| Switch Positions | HEAT-OFF-COOL AUTO-ON |
| Sensor Element | Thermistor |
| Accuracy | ±1 F ± 0.5 C |
| Color | Premier White® |
| Switch Type | Relay |
| Power Method | Dual Powered: Battery or Hardwire |
| Terminal Designations | R, RC, C, W, Y, G, O, B |
| Display Size | 1.32 sq in. |
| Changeover | Manual |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool: 50 F to 99 F Heat: 4.5 C to 32 C; Cool: 10 C to 37 C |
| Cycles per Hour | Heating 2 - 6 CPH; Cooling 2 -6 CPH |
| Cool Current | 0.02 A to 1.0 A running |
| Heat Current | 0.02 A to 1.0 A running |
Additional Info
Additional Info
| Name | TH1110DH1003 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TH1110DH1003 Honeywell |
