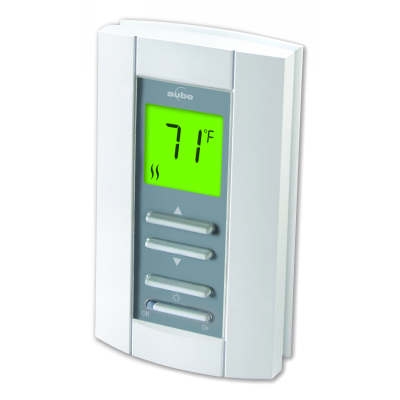

TH114-AF-12VDC
TH114-AF-12VDC Honeywell - Non-Programmable Low volt master thermostat for floor heating over 15 A; Electric Heating; Master unit for radiant floor; 12 Vdc; Switch Type: With CT230 slave units.
Call For Availability
Availability: In stock
$228.61
Details
Details
TH114-AF-12VDC Honeywell
The TH114-AF-12VDC Honeywell is a TH114 Series that delivers the features that matter most in a non-programmable thermostat: an easy-to-read backlit display, slim contemporary design and precise temperature control.
| Application | Electric Heating; Master unit for radiant floor |
| Dimensions | 4.9 in X 2.8 in X 0.9 in 124 mm X 70 mm X 23 mm |
| Includes | Aube AC112-01 North American Sensor, 15 feet (4.6 m) or 50 feet (15 m) |
| Comments | Aube AC112-01 North American Floor Sensor (15-feet/4.6-m); Aube CT230-120GA, CT230-120GB, CT230-240GA or CT230-240GB Floor Heating Slave Units |
| Comments | with backlight; works with CT230 slave units |
| Mounting | Vertical |
| Electrical Rating | 75 mA @ 12 Vdc |
| Electrical Connections | 6 in. (150 mm) tinned copper lead wires |
| Supply Voltage | 12 Vdc |
| Switch Positions (System) | °C/°F; AF (ambient + floor)/F (floor only) |
| Operating Temperature Range | 32 F to 122 F 0 C to 50 C |
| Sensor Element | Thermistor |
| Accuracy | 0.9 F 0.5 C |
| Differential Temperature | 1 F 0.5 C |
| Color | White |
| Ambient Temperature Range | AF mode: 32 F to 122 F; F mode: 32 F to 140 F AF mode: 0 C to 50 C; F mode: 0 C to 60 C |
| Switch Type | With CT230 slave units |
| LEDs | GFCI fault light |
| Power Method | Hardwired |
| Operation | Must be linked to at least 1 slave unit (CT-230-XXXXX) |
| Setting Temperature Range | 40 F to 86 F room temperature; 40 F to 104 F floor temperature 5 C to 30 C room temperature; 5 C to 40 C floor temperature |
| Cycles per Hour | 4 |
Additional Info
Additional Info
| Name | TH114-AF-12VDC |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | No |
