TH3210D1004

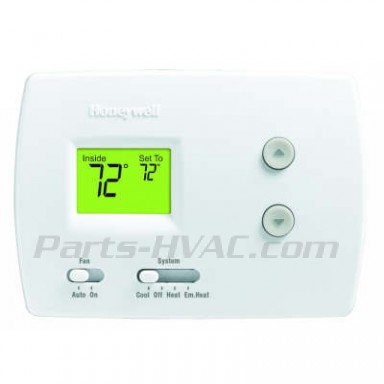

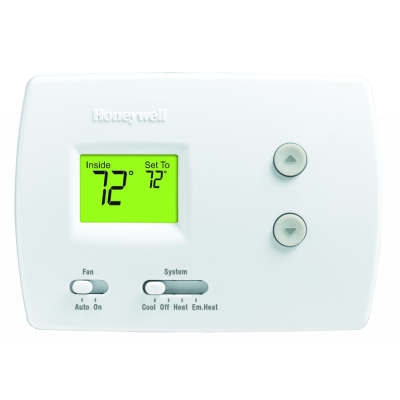

TH3210D1004 Honeywell - Non-Programmable PRO Digital Thermostat; Heat Pump; 2heat/1cool; Dual Powered: Battery or Hardwire; 1.32 Sq. In.
Can be used to directly replace: P320-0210 CarrierCall For Availability
Availability: In stock
$111.20
- Buy 5 for $60.49 each and save 46%
- Buy 10 for $57.95 each and save 48%
Details
Details
TH3210D1004 Honeywell
The TH3210D1004 Honeywell is a Non-Programmable PRO Digital Thermostat; Heat Pump; 2heat/1cool; Dual Powered: Battery or Hardwire; 1.32 Sq. In.
| Application | 2 Heat/1 Cool Heat Pump Systems |
| Dimensions | 3 13/16 in. High X 5 3/8 in. Wide X 1 1/4 in. Deep 97 mm High X 137 mm Wide X 32 mm Deep |
| Mounting | Horizontal |
| Electrical Rating | 20 to 30 Vac or 750 mV |
| Frequency | 50 Hz; 60 Hz |
| Stages | 2 Heat/1 Cool Heat Pump |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Supply Voltage | 20 to 30 Vac |
| Switch Positions | HEAT-OFF-COOL-EM. HT AUTO-ON |
| Sensor Element | Thermistor |
| Accuracy | ±1 F ± 0.5 C |
| Color | Premier White® |
| Switch Type | Relay |
| Power Method | Dual Powered: Battery or Hardwire |
| Terminal Designations | R, Y, AUX, E, G, O, B, L, C |
| Display Size | 1.32 sq in. |
| Changeover | Manual |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool: 50 F to 99 F Heat: 4.5 C to 32 C; Cool: 10 C to 37 C |
| Cycles per Hour | Heating 1-12 CPH; Cooling 1-6 CPH |
| Cool Current | 0.02 A to 1.0 A running |
| Heat Current | 0.02 A to 1.0 A running |
Additional Info
Additional Info
| Name | TH3210D1004 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TH3210D1004 Honeywell |
