TH6110D1005

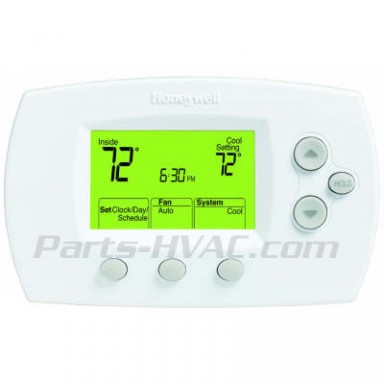

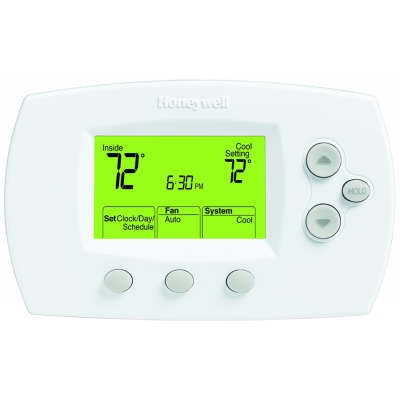

TH6110D1005 Honeywell - Programmable FocusPRO 6000 Thermostat - Premier White
24V/750 Millivolt Focus Pro Programmable Single-Stage, Dual Powered Thermostat with Small Display, 1 Heat - 1 Cool, 5-1-1 or 5-2 Day Program.
Replaces: TH6110D1013 T8001C1019 T8131C1004
In Stock (63)
Availability: In stock
$118.44
Details
Details
TH6110D1005 Honeywell
TH6110D1005 Honeywell - Programmable FocusPRO 6000 Thermostat - Premier White
| Application | Heat/Cool or Heat Pump without Auxiliary Heat |
| Dimensions | 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep 91 mm High X 147 mm Wide X 38 mm Deep |
| Comments | Standard display size 3.75 sq. in. |
| Mounting | Horizontal |
| Electrical Ratings | 20 to 30 Vac or 750 mV |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 1 Heat/1 Cool |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Supply Voltage | 20 to 30 Vac; 750 mV |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO |
| Switch Positions (Fan) | AUTO-ON |
| Sensor Element | Thermistor |
| Differential Temperature | ± 1 F ±0.5 C |
| Color | Premier White® |
| Programmability | 5-1-1 Day Program or 5-2 Day Program |
| Power Method | Battery or Hardwired |
| Terminal Designations | Rc, R, W (O/B), Y, G, C |
| Display Size | N/A |
| Changeover | Auto/Manual Selectable |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool: 50 F to 99 F Heat: 4.5 C to 32 C; Cool: 10 C to 37 C |
| Cool Current | 0.02 A to 1.0 A running |
| Heat Current | 0.02 A to 1.0 A running |
| Fan Current | 0.02 A to 0.5 A running |
Additional Info
Additional Info
| Name | TH6110D1005 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | TH6110D1005 Honeywell |
