TH6220D1002

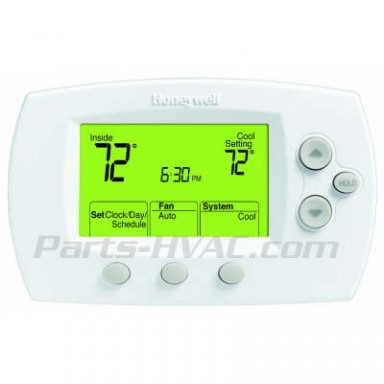

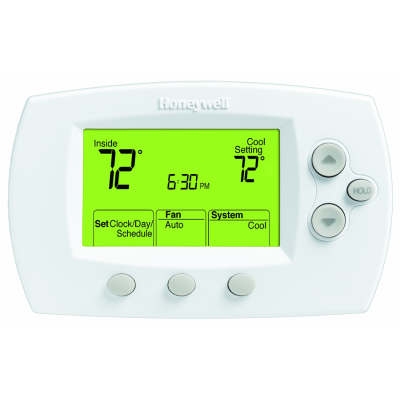

TH6220D1002 Honeywell - Programmable FocusPRO 6000 Thermostat - Premier White
24V/750 Millivolt Focus Pro Programmable Multi-Stage, with Small Display, 2 Heat - 2 Cool, 5-1-1 or 5-2 Day Program. 3.75 SQ. Inch, 2 or 3 Wire, 40-90F
Replaces: T8011R1006 T8011R1014 T8011R1147
In-Stock (106)
Availability: In stock
$130.25
Details
Details
TH6220D1002 Honeywell
TH6220D1002 Honeywell - Programmable FocusPRO 6000 Thermostat - Premier White
| Application | Heat/Cool or Heat Pump with Auxiliary Heat |
| Dimensions | 3 9/16 in. High X 5 13/16 in. Wide X 1 1/2 in. Deep 91 mm High X 147 mm Wide X 38 mm Deep |
| Comments | Standard display size 3.75 sq. in. |
| Mounting | Horizontal |
| Electrical Ratings | 20 to 30 Vac or 750 mV |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 2 Heat/2 Cool Conventional; Up to 2 Heat/1 Cool Heat Pump |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Supply Voltage | 20 to 30 Vac; 750 mV |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON |
| Color | Premier White® |
| Programmability | 5-1-1 Day Program or 5-2 Day Program |
| Power Method | Battery or Hardwired |
| Terminal Designations | R, RC, C, W-O/B, G, Y, W2-AUX/E, Y2-L |
| Display Size | N/A |
| Changeover | Auto/Manual Selectable |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool: 50 F to 99 F Heat: 4.5 C to 32 C; Cool: 10 C to 37 C |
| Cool Current | Y = 0.02 A to 1.0 A running, Y2 = 0.02 A to 1.0 A running |
| Heat Current | W = 0.02 A to 1.0 A running; W2 (AUX) = 0.02 A to 0.5 A running; E = 0.02 A to 1.0 A running |
| Fan Current | 0.02 A to 0.5 A running |
Additional Info
Additional Info
| Name | TH6220D1002 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TH6220D1002 Honeywell |
