TH8321R1001

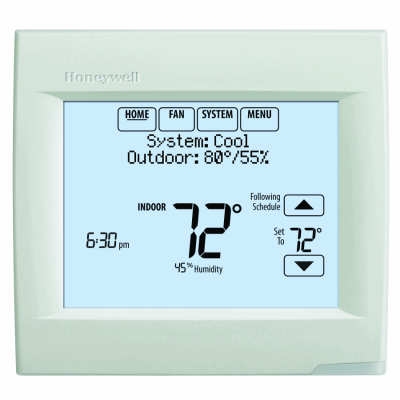

TH8321R1001 Honeywell VisionPRO 8000 with RedLINK technology. Residential or commercial use. 7 day Honeywell programmable thermostats. Up to 3H/2C heat
pump or up to 2H/2C conventional.
TH8321R1001 - Includes a set of Universal IAQ contacts to control humidification, dehumidification or ventilation.
Works standalone or with the THM5421R1021 Equipment Interface Module.
Can be used to Directly Replace: TH8321U1097In stock
- SKU
- TH8321R1001
- Availability
- In-Stock (22)
Details
TH8321R1001 Honeywell
TH8321R1001 Honeywell VisionPRO 8000 with RedLINK technology. Residential or commercial use. 7 day programmable. Up to 3H/2C heat
pump or up to 2H/2C conventional.
TH8321R1001 Honeywell VisionPRO 8000 Includes a set of Universal IAQ contacts to control humidification, dehumidification or ventilation. Works standalone or with the THM5421R1021 Equipment Interface Module.
| Hazmat Information | UN 3091 Lithium metal batteries packed in/with equipment |
| Application | Up to 3H/2C heat pump or up to 2H/2C conventional |
| Dimensions | 4 5/8 in. High, 4 15/16 in. Wide, 1 1/8 in. Deep 118 mm. High, 126 mm. Wide, 29 mm. Deep |
| Includes | VisionPRO® 8000 thermostat |
| Used With | Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK™ accessories |
| Electrical Rating | 18 to 30 Vac or 750 mV |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module. |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Supply Voltage | 18 to 30 Vac or 750 mV |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON-CIRC-FOLLOW SCHEDULE |
| Operating Temperature Range | 32 F to 120 F 0 C to 48.9 C |
| Color | Arctic White |
| Programmability | 7-Day Multiple Day Programming or Non-Programmable |
| Power Method | Battery or Hardwired |
| Terminal Designations | R, RC, C, W-O/B, W2-AUX/E, Y, Y2, G, A-L/A, K, U1 U1, S1 S1 |
| Display Size | 10 sq in. |
| Changeover | Auto or Manual |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool 50 F to 99F Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C |
| Humidification Setting Range | Cooling: 40 to 80% RH. Heating: 10 to 60% RH. |
| Dehumidification Setting Range | 40 to 80% RH. |
