THM5421R1005

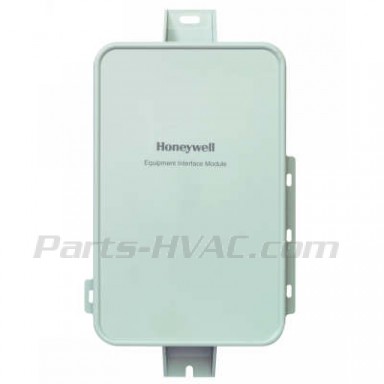

THM5421R1005 Honeywell - Prestige® IAQ Equipment Interface Module for the Prestige IAQ Comfort System. OBSOLETE
Direct Replacement: THM5421R1013 - RedLINK enabled Prestige IAQ 2.0 equipment interface module.
Availability: In stock
$0.00
Details
Details
THM5421R1005 Honeywell
The THM5421R1005 Honeywell Prestige® IAQ 2.0 thermostat is a 2 wire high definition color touch screen thermostat, 7 day programmable, configurable for residential and light commercial, up to 4 heat / 2 cool heat pump and up to 3 heat / 2 cool conventional, controls humidification, dehumidification and ventilation, provides Delta T Alerts and Diagnostics, works with the Equipment Interface Module and RedLINK™ accessories including the RedLINK™ Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor and Wireless Indoor Sensor.
| Application | Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity |
| Dimensions | 9 5/16 in. High, 4 13/16 in. Wide, 1 5/8 in. Deep 237.4 mm High, 122.5 mm Wide, 40.6 mm Deep |
| Includes | Prestige IAQ Equipment Interface Module Only |
| THM5421R1005 Used With | THX9421R Prestige IAQ Thermostat |
| Comments | Includes Humidification Control with or without Frost Protection, Dehumidification using Whole House Dehumidifier or Air Conditioning with High or Low speed fan, Ventilation Control and Advanced Heat Pump Control. |
| Mounting | Vertical |
| Electrical Rating | 18 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Switch Positions | HEAT-OFF-COOL-AUTO AUTO-ON |
| Supply Voltage | 18 to 30 Vac |
| Operating Temperature Range | -40 F to 165 F -40 C to 73.9 C |
| Color | Gray |
| Power Method | Hardwired |
| Terminal Designations | R, C, RH, RC, W-O/B, W2-Aux1, W3-Aux2, Y, Y2, G, L, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2 |
| Cool Current | 1.0 A running |
| Heat Current | 1.0 A running |
| Fan Current | 0.6 A running |
Additional Info
Additional Info
| Name | THM5421R1005 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | Honeywell THM5421R1005 |
