THM5421R1021

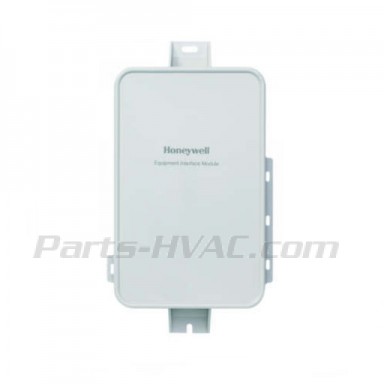

THM5421R1021 Honeywell RedLINK INTERFACE MODULE for all Prestige IAQ thermostats and all the VisonPRO 8000 Thermostats
Can be used as a direct replacement for: THM5421R1013
In Stock (38)
Availability: In stock
$117.80
Details
Details
THM5421R1021 Honeywell

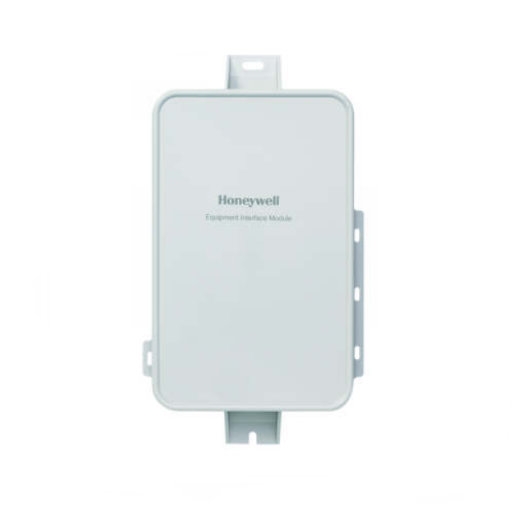

THM5421R1021 Honeywell RedLINK Interface Module for all Prestige IAQ thermostats and all the VisonPRO 8000 Thermostats
The THM5421R1021 Controls up to 4 stages of heat and 2 stages of cool in a heat pump system. Also up to 3 stages of heat and 2 stages of cool in a conventional system. 3 sets of universal IAQ contacts to control humidification, dehumidification, and ventilation Four sensor inputs for wired sensors or dry contact devices. Compatible with all Prestige IAQ thermostats and the all-new VisionPRO 8000..
| Application | Gas, oil, electric, heat pump, forced warm air, hot water, steam or gravity |
| Dimensions | 9 5/16 in. High, 4 13/16 in. Wide, 1 5/8 in. Deep 237.4 mm High, 122.5 mm Wide, 40.6 mm Deep |
| Includes | THM5421R1021 Equipment Interface Module |
| Comments | All THX9421R5021 Prestige® 2-Wire IAQ Thermostats and all versions of Prestige® IAQ Thermostats and the VisionPRO® Thermostats with RedLINK™ technology. |
| Mounting | Vertical |
| Electrical Rating | 18 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 5 to 95% RH, non-condensing |
| Supply Voltage | 18 to 30 Vac |
| Operating Temperature Range | -40 F to 165 F -40 C to 73.9 C |
| Color | Gray |
| Power Method | Hardwired |
| Terminal Designations | R, RC, RH, C, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D |
| Cool Current | 1.0 A running |
| Heat Current | 1.0 A running |
| Fan Current | 0.5 A running |
| External Sensors Available | N/A |
Additional Info
Additional Info
| Name | THM5421R1021 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | THM5421R1021 Honeywell |
