THX9421R5021BB

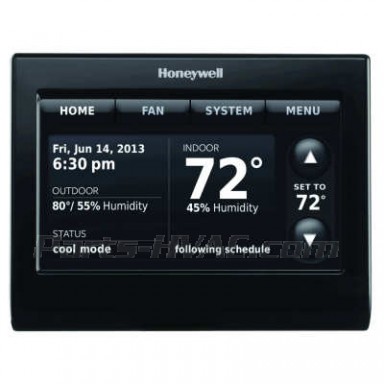

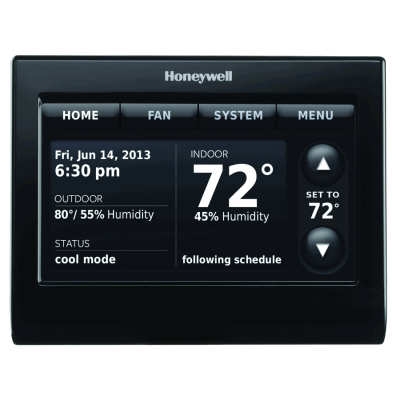

THX9421R5021BB Honeywell - Programmable 2-Wire IAQ high definition color touchscreen black front/black side thermostat with RedLINK™ technology; Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems; 8.06 sq in. Display Size; 40 to 80% RH. Dehumidification Setting Range.
OBSOLETE
Direct Replacement: THX9421R5021WW (white)
Availability: Out of stock
$0.00
Details
Details
THX9421R5021BB Honeywell
The THX9421R5021BB Honeywell is a Prestige® IAQ thermostat 2 wire high definition color touch screen thermostat, 7 day programmable and selectable for residential or light commercial use. Controls up to 4-stages of heat and 2-stages of cool in a heat pump system and up to 3-stages of heat and 2-stages of cool in a conventional system. Three sets of Universal IAQ contacts to control humidification, dehumidification, and ventilation. Four sensor inputs for wired sensors or dry contact devices. Works with the Equipment Interface Module and RedLINK® accessories including the RedLINK® Internet Gateway, Portable Comfort Control, Wireless Outdoor Sensor and Wireless Indoor Sensor.
| Hazmat Information | UN 3091 Lithium metal batteries packed in/with equipment |
| Application | Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems |
| Dimensions | 3 1/2 in. High, 4 1/2 in. Wide, 7/8 in. Deep 88 mm. High, 115 mm. Wide, 22 mm. Deep |
| Used With | THM5421R1021 Equipment Interface Module and RedLINK⢠accessories |
| Comments | Tri-Lingual Display (selectable for English, French or Spanish) |
| Electrical Rating | 18 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems, See Equipment Interface Module |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Supply Voltage | 18 to 30 Vac |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON-CIRC-FOLLOW SCHEDULE |
| Operating Temperature Range | 32 F to 120 F 0 C to 48.9 C |
| Color | Front: Black, Side: Black |
| Programmability | 7-Day Multiple Day Programming or Non-Programmable |
| Power Method | Hardwired |
| Terminal Designations | R, C then RedLINK to Equipment Interface Module |
| Display Size | 8.06 sq in. |
| Changeover | Auto or Manual |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool 50 F to 99F Heat: 4.5 C to 32.0 C; Cool: 10 C to 37.0 C |
| Humidification Setting Range | Cooling: 40 to 80% RH. Heating: 10 to 60% RH. |
| Dehumidification Setting Range | 40 to 80% RH. |
| External Sensors Available | N/A |
Additional Info
Additional Info
| Name | THX9421R5021BB |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | THX9421R5021BB |
