TL7235A1003
TL7235A1003 Honeywell - Non-Programmable TL7235 Digital Thermostat; 40 F to 86 F; 1 Heat; 208 Vac; 240 Vac supply voltage; 4-wire DPST; mounting vertical
REPLACES: TL7230A1004 T4800A1015
In Stock (75)
Availability: In stock
$117.52
Details
Details

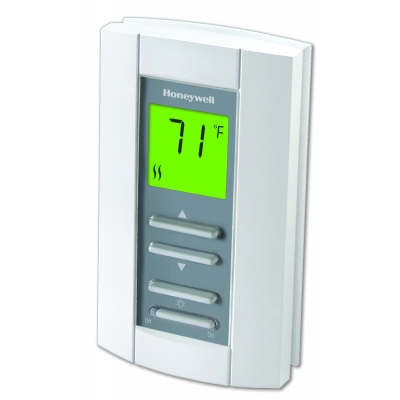

TL7235A1003 Honeywell
The TL7235A1003 Honeywell is a LineVoltPRO™ digital thermostat that provides electronic control of 208/240 Vac resistive rated electric baseboard heaters, radiant ceiling heat, convectors and fan forced heaters. If used as directed, they can save up to 10% on annual heating costs.
| Application | Electric baseboards, convectors and fan forced heaters (resistive rated loads). |
| Dimensions | 4 7/8 in. high x 2 3/4 in. wide x 7/8 in. deep 124 mm high x 70 mm wide x 23 mm deep |
| Mounting | Vertical |
| Electrical Rating | 15 Amps Max; 3600 Watts at 240 VAC, 3120 Watts at 208 VAC |
| Frequency | 50 Hz; 60 Hz |
| Stages | 1 Heat |
| Approvals | UL Listed 9R12, File Number: E183695 cCSAus, File Number: LR76030 |
| Electrical Connections | 5.5 in. (140mm) tinned copper lead wires |
| Supply Voltage | 208 Vac; 240 Vac |
| Operating Temperature Range | 32 F to 122 F 0 C to 50 C |
| Sensor Element | Thermistor |
| Accuracy | ±1 F ± 0.5 C |
| Color | Premier White® |
| Switching Action | 4-Wire DPST |
| Switch Type | Relay |
| Setting Temperature Range | 40 F to 86 F 5 C to 30 C |
Additional Info
Additional Info
| Name | TL7235A1003 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | TL7235A1003 Honeywell |
