TP9630A1004

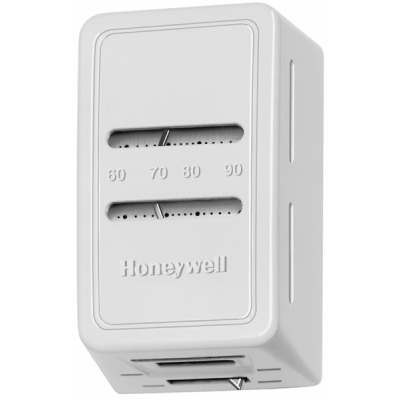

TP9630A1004 Honeywell Pneumatic Wall Thermostat for proportional control of pneumatic valves and actuators. Direct acting with one temperature set point and either one or two pipes.
In Stock (4)
Availability: In stock
$200.02
Details
Details
TP9630A1004 Honeywell
This TP9630A1004 Pneumatic Wall Thermostat is for proportional control of pneumatic valves and actuators. It is a one or two pipe, single temperature direct action pneumatic thermostat with cover.
- Cover is mounted and locked into place with concealed setscrews.
- Thermostat snaps onto backplate.
- Adapter kits are available to retrofit most pneumatic jobs.
- Branch line capacity Low for TP9630 and TP9633.
TP9630A1004 Specifications:
| Application & Comments | Wall Thermostat | |
| Action | Direct Action | |
| Setpoint | Single | |
| Includes | Cover, Setpoint, and Thermometer are Visible | |
| Airflow Usage |
0.011 scfm (5.2 mL/s) | |
| Maximum Safe Operating Pressure (psi/kPa) | 25 psi , 170 kPa | |
| Temperature Range |
50 F to 100 F , 10 C to 38 C | |
| Setpoint Temperature Range |
60 F to 90 F , 16 C to 32 C | |
| Air connections | Barb fittings 5/32 in. (4 mm) | |
| Number of Pipes |
1 or 2 |
Additional Info
Additional Info
| Name | TP9630A1004 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TP9630A1004 Honeywell |
