TP9630B1003
Details

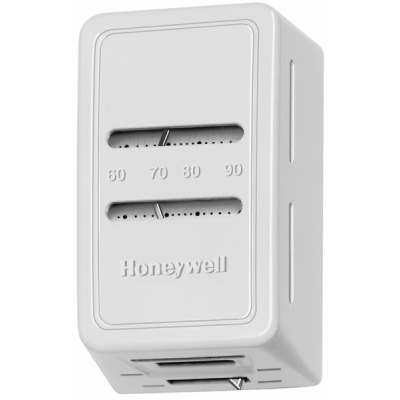

TP9630B1003 Honeywell
This Pneumatic Wall Thermostat is for proportional control of pneumatic valves and actuators. It is a one or two pipe, single temperature reverse action pneumatic thermostat.
- Cover is mounted and locked into place with concealed setscrews.
- Thermostat snaps onto backplate.
- Adapter kits are available to retrofit most pneumatic jobs.
- Branch line capacity Low for TP9630 and TP9633.
TP9630B1003 Specifications:
| Application & Comments | Wall Thermostat | |
| Action | Reverse Action | |
| Setpoint | Single | |
| Includes | Cover, Setpoint, and Thermometer are Visible | |
| Airflow Usage |
0.011 scfm (5.2 mL/s) | |
| Maximum Safe Operating Pressure (psi/kPa) | 25 psi , 170 kPa | |
| Temperature Range |
50 F to 100 F , 10 C to 38 C | |
| Setpoint Temperature Range |
60 F to 90 F , 16 C to 32 C | |
| Air connections | Barb fittings 5/32 in. (4 mm) | |
| Number of Pipes |
1 or 2 |
Additional Info
| Manufacturer | Honeywell |
|---|
