TP970A2004

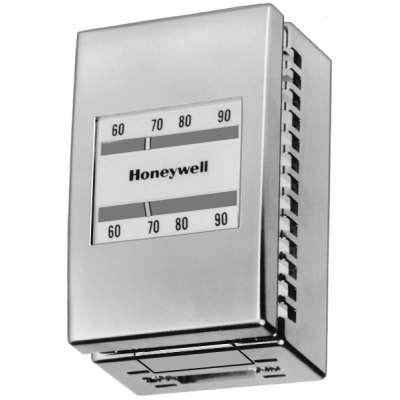

TP970A2004 Honeywell Pneumatic Wall Thermostat for comparable control of pneumatic valves and actuators. Direct acting with one temperature set point (59 F to 90 F), and two pipes. From the Honeywell TP970 Series.
Can be used to directly replace: THT0404 Trane
In-Stock (134)
Availability: In stock
$314.18
Details
Details
TP970A2004 Honeywell
This Pneumatic Wall Thermostat is for comparable control of pneumatic valves and actuators. It is a two pipe, single setpoint temperature ( 59 F to 90 F ) direct action pneumatic thermostat.
- Shock-resistant, suspension-mounted
- Backplate has molded air connections-no separate fittings needed.
TP970A2004 Specifications:
| Application & Comments | Heating | |
| Action | Direct Action | |
| Setpoint | Single | |
| Includes | Order Cover Separately | |
| Airflow Usage |
0.011 scfm (5.2 mL/s) | |
| Maximum Safe Operating Pressure (psi/kPa) | 25 psi , 170 kPa | |
| Temperature Range |
50 F to 100 F , 10 C to 38 C | |
| Setpoint Temperature Range |
59 F to 90 F , 15 C to 32 C | |
| Throttling Range |
2 F to 10 F, -16 C to -12 C | |
| Mounting | Wall Mount | |
| Number of Pipes |
2 |
Additional Info
Additional Info
| Name | TP970A2004 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TP970A2004 Honeywell |
