TP970A2020

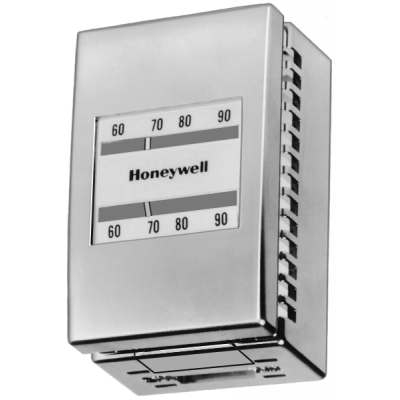

TP970A2020 Honeywell Pneumatic Wall Thermostat for comparable control of pneumatic valves and actuators. Direct acting with two pipes and one setpoint temperature with a throttling range from 33 F to 41 F.
Part of the Honeywell TP970 Series.
In stock
- SKU
- TP970A2020
- Availability
- In-Stock (12)
$359.63
Details
TP970A2020 Honeywell
This Pneumatic Wall Thermostat is for comparable control of pneumatic valves and actuators. It is a two pipe, single temperature direct action pneumatic thermostat.
- Shock-resistant, suspension-mounted
- Backplate has molded air connections-no separate fittings needed.
TP970A2020 Specifications:
| Application & Comments | Heating | |
| Action | Direct Action | |
| Setpoint | Single | |
| Includes | Order Cover Separately | |
| Airflow Usage |
0.011 scfm (5.2 mL/s) | |
| Maximum Safe Operating Pressure (psi/kPa) | 25 psi , 170 kPa | |
| Temperature Range |
38 C max | |
| Setpoint Temperature Range |
15 C to 30 C | |
| Throttling Range |
33 F to 41 F, 1 C to 5 C | |
| Mounting | Wall Mount | |
| Number of Pipes |
2 |
Additional Info
| Manufacturer | Honeywell |
|---|
