VP522A1047

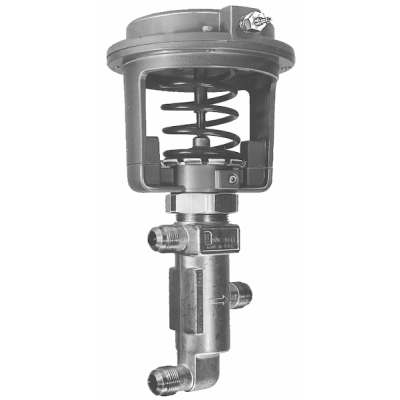

VP522A1047 Honeywell Pneumatic Three-way mixing, unitary water valve 7/8 in. O.D. and 2.5/4 Cv capacity
Replaces:
2569-005
V6900-20330
In Stock (6)
Availability: In stock
$1,567.28
Details
Details
| Dimensions (inches) | 9 7/8 in. high x 5 1/8 in. diameter |
| Dimensions (millimeters) | 257 mm high x 130 mm diameter |
| Operating Humidity Range (% RH) | 5 to 95% RH |
| Connection Size (inches) | O.D.: 7/8 in.; Nominal: 3/4 in. |
| Type of Connection | 45 deg. SAE flare |
| Body Pattern | Three-way Mixing |
| Spring Range (psi) (kPa ) | 2 psi to 13 psi; 14 kPa to 90 kPa |
| Air connections | 1/8 in. NPT |
| Capacity (Cv) | Port A: 4 Cv, Port B: 2.5 Cv |
| Capacity (Kv) | Port A: 3.5 Kv, Port B: 2.2 Kv |
| Valve Action | Proportional/Sequencing |
| Type of Valve | Unitary |
| Body Pressure | 250 psi; 1724 kPa |
| Maximum Diaphragm Pressure | 25 psi; 172 kPa |
| Controlled Fluid | Water |
| Close-off Ratings at Branch Line Pressure | 45 psid at 13 psi |
| Temperature Range | 35 F to 250 F; 2 C to 121 C; Max Actuator Temp--160 F; 71 C |
Additional Info
Additional Info
| Name | VP522A1047 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | VP522A1047 Honeywell |
| Pneumatic Valves | No |
