VP522B1003

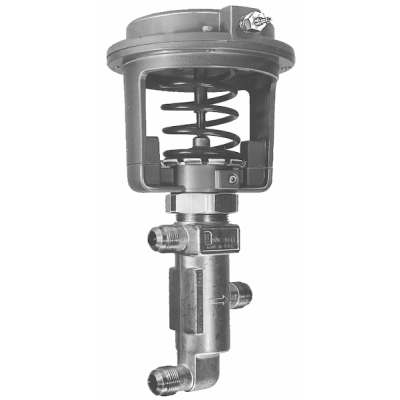

VP522B1003 Honeywell PNEU DIVERTING SEQUENCING VALVE 3/8" 1.5CV
Replaces:
2569-002
V6901-01331
VP657SC
In Stock (6)
Availability: In stock
$3,072.57
Details
Details
| Dimensions (inches) | 9 7/8 in. high x 5 1/8 in. diameter |
| Dimensions (millimeters) | 257 mm high x 130 mm diameter |
| Operating Humidity Range (% RH) | 5 to 95% RH |
| Connection Size (inches) | O.D.: 1/2 in.; Nominal: 3/8 in. |
| Type of Connection | 45 deg. SAE flare |
| Body Pattern | Three-way Diverting, Sequencing |
| Spring Range (psi) (kPa ) | Adjustable |
| Air connections | 1/8 in. NPT |
| Capacity (Cv) | Port A: 1.5 Cv, Port B: 1.5 Cv |
| Capacity (Kv) | Port A: 1.3 Kv, Port B: 1.3 Kv |
| Valve Action | Diverting/Sequencing |
| Type of Valve | Unitary |
| Body Pressure | 250 psi; 1724 kPa |
| Maximum Diaphragm Pressure | 25 psi; 172 kPa |
| Controlled Fluid | Water |
| Close-off Ratings at Branch Line Pressure | 15 psid at 13 psi |
| Temperature Range | 35 F to 250 F; 2 C to 121 C; Max Actuator Temp--160 F or 71 C |
Additional Info
Additional Info
| Name | VP522B1003 |
|---|---|
| Manufacturer | Honeywell |
| UPC: | VP522B1003 Honeywell |
| Pneumatic Valves | No |
