TH8321U1006

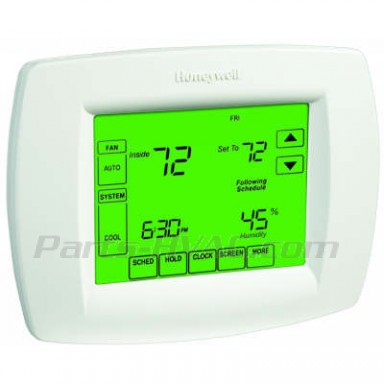

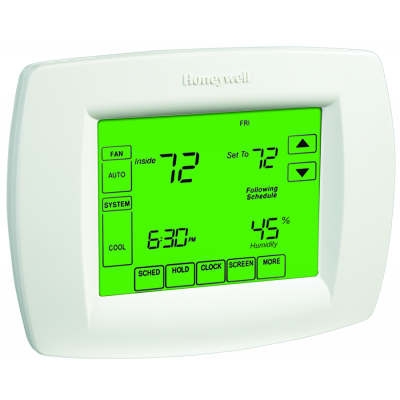

TH8321U1006 Honeywell VisionPRO Thermostat - Universal Programmable Thermostat
Premier White 24V/750 Millivolt VisionPRO 7-Day Programmable Dual Powered Universal Application Touchscreen Thermostat.
2 or 3 Wire, 3Heat - 2Cool, *Includes Dehumidification Control
Direct Replacement: TH8321R1001
See Replacement Part
Availability: In stock
$0.00
Details
Details
TH8321U1006 Honeywell
TH8321U1006 Honeywell VisionPRO Thermostat - Universal Programmable Thermostat
C7089U1006 - Remote Outdoor Sensor
C7189U1005 - Remote Indoor Sensor
32003796-001 - Cover Plate, 7-7/8X5-1/2 in., Prem. White
Direct Replacement Parts for TH8321U1006: TH8321R1001
| Hazmat Information | UN 3091 Lithium metal batteries packed in/with equipment |
| Application | Heat/Cool or Heat Pump with Auxiliary Heat |
| Dimensions | 4 9/16 in. high x 6 in. wide x 1 1/4 in. deep 116 mm high x 152 mm wide x 32 mm deep |
| Comments | The L terminal is an input or output.; Selectable: Programmable or Non-Programmable; Includes Dehumidification Control. |
| Mounting | Horizontal |
| Electrical Ratings | 20 to 30 Vac or 750 mV |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 3 Heat/2 Cool Heat Pump; Up to 2 Heat/2 Cool Conventional |
| Operating Humidity Range (% RH) | 5 to 90% RH, non-condensing |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON-CIRC |
| Sensor Element | Thermistor |
| Differential Temperature | ± 1 F ±0.5 C |
| Color | Premier White® |
| Programmability | 7-Day Multiple Day Programming or Non-Programmable |
| Power Method | Battery or Hardwired |
| Terminal Designations | R, RC, C, W-O/B, G, Y, Y2, W2-AUX/E, L, S1, S2 |
| Display Size | 10 sq in. |
| Changeover | Auto/Manual Selectable |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool: 50 F to 99 F Heat: 4.5 C to 32 C; Cool: 10 C to 37 C |
| Cool Current | 1.0 A running |
| Heat Current | 1.0 A running |
| Fan Current | 0.6 A running |
Additional Info
Additional Info
| Name | TH8321U1006 |
|---|---|
| Documentation | No |
| Manufacturer | Honeywell |
| UPC: | TH8321U1006 |
