YTHX9321R1000
YTHX9321R1000 Honeywell - YTHX9321R1000 Prestige® SD Comfort System Kit for the Prestige Comfort System. RedLINK Enabled.
Replacement Part: YTHX9321R5061
Availability: In stock
$0.00
Details
Details
YTHX9321R1000 Honeywell

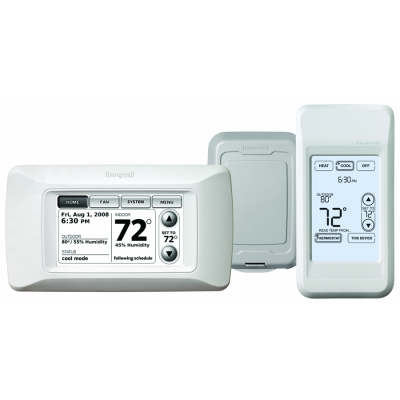

YTHX9321R1000 Honeywell Prestige® SD Comfort System Kit for the Prestige Comfort System, RedLINK™ Enabled. . .Obsolete
| Hazmat Information | UN 3091 Lithium metal batteries packed in/with equipment |
| Application | Up to 3 Heat/2 Cool Heat Pumps; Up to 2 Heat/2 Cool Conventional Systems |
| Includes | Standard Definition Touchscreen Thermostat; REM5000R1001 Portable Comfort Control and C7089R1013 Wireless Outdoor Sensor |
| Used With | RedLINK™ enabled thermostats and accessories |
| Comments | Tri-Lingual Display (selectable for English, French or Spanish) |
| Electrical Rating | 18 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Stages | Up to 3 Heat / 2 Cool Heat Pump or Up to 2 Heat / 2 Cool Conventional |
| Electrical Connections | Screw terminals |
| Operating Humidity Range (% RH) | 0 to 90% RH, non-condensing |
| Supply Voltage | 18 to 30 Vac |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON-CIRC |
| Operating Temperature Range | 32 F to 120 F 0 C to 48.9 C |
| Color | Arctic White |
| Programmability | 7-Day Multiple Day Programming or Non-Programmable |
| Power Method | Hardwired |
| Terminal Designations | C, R, Rc, W-O/B, W2-AUX/E, Y, Y2, G, L, K, HUM, HUM, DHM, DHM |
| Display Size | 8.06 sq in. |
| Changeover | Auto or Manual |
| Setting Temperature Range | Heat: 40 F to 90 F; Cool 60 F to 99F Heat: 4.5 C to 32.0 C; Cool: 15.5 C to 37.0 C |
| Humidification Setting Range | 10 to 60% RH. |
| Dehumidification Setting Range | 40 to 80% RH. |
Additional Info
Additional Info
| Name | YTHX9321R1000 |
|---|---|
| Documentation | N/A |
| Manufacturer | Honeywell |
| UPC: | No |
